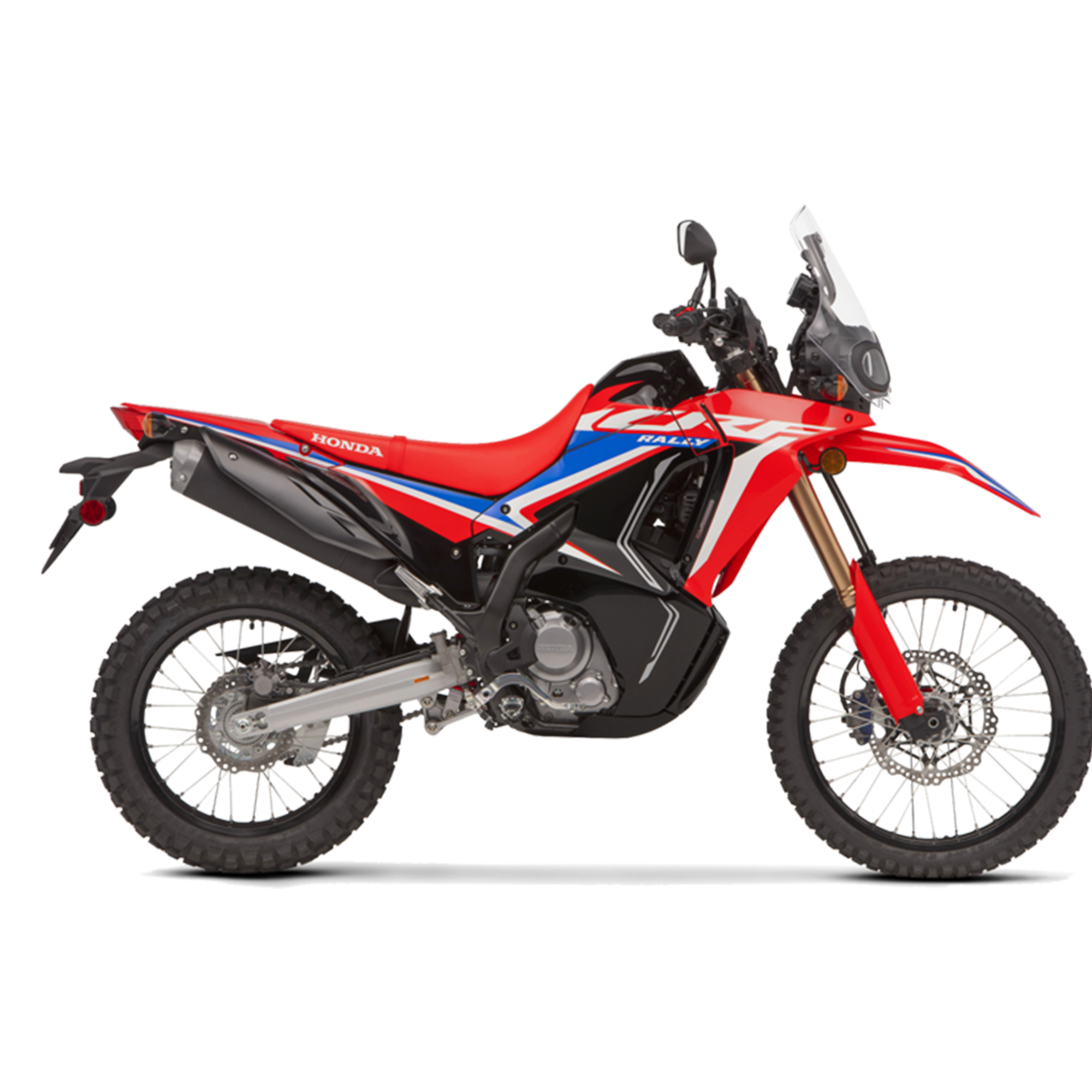

More power, less weight and improved comfort set for new horizons.

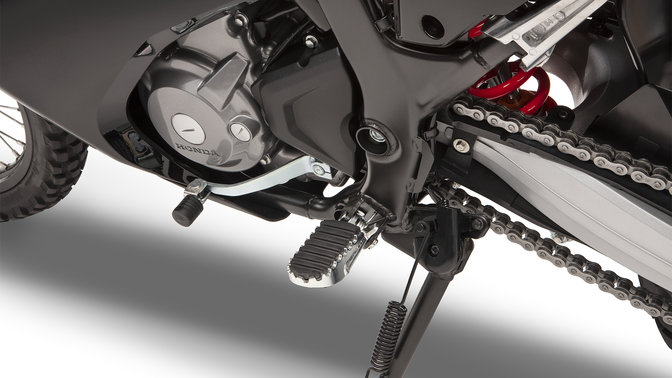

We’ve cut a full 4kg out of the CRF300 RALLY’s chassis, and built an extra 2.7L capacity into the fuel tank, for greater range between fill-ups. To add comfort for those long days in the saddle, the handlebar position is higher. Seat height is 10mm lower and there are now rubber inserts in the footpegs. And the liquid-cooled, 4V DOHC single-cylinder EURO5-spec engine is equipped with an Assist/Slipper Clutch and produces more peak power at 20.1kW, with improved torque of 26.6Nm, for strong all-round response. There’s also extra ground clearance – always welcome off-road – and a Gear Position indicator in the dash.
GOOD TO GO
The open road beckons. Where will it take you?
The CRF300 RALLY is about the freedom delivered by the lightweight chassis, long-travel suspension and responsive engine. But it’s also about independence; the long-range autonomy that a big fuel tank allows added to the sense of go-anywhere potential stored away in this motorcycle’s comprehensive abilities.
It is engineered to serve up a real taste of adventure to riders that want an easy to manage machine, whether for the daily commute, weekend tour or global journeys. All of the detail improvements – more power, less weight, larger tank range, improved riding position and extra ground clearance – combine to further perfect a quest-ready package, wherever you’re headed.
New More Powerful, Liquid-cooled DOHC 4v Single-Cylinder Engine
We’ve increased cubic capacity resulting in an extra 1.9Kw Peak Power, at 20.1w and 4Nm more peak torque, at 26.6Nm and delivery is crisp and instant the engine also has full EURO5 compliance
The Assist/Slipper Clutch eases upshifts and manages the rear wheel “hop” under had braking and rapid downshifts, for extra control around town in busy traffic, and it’s essential when navigating challenging off-road terrain.
Lighter Chassis with improved ground clearance

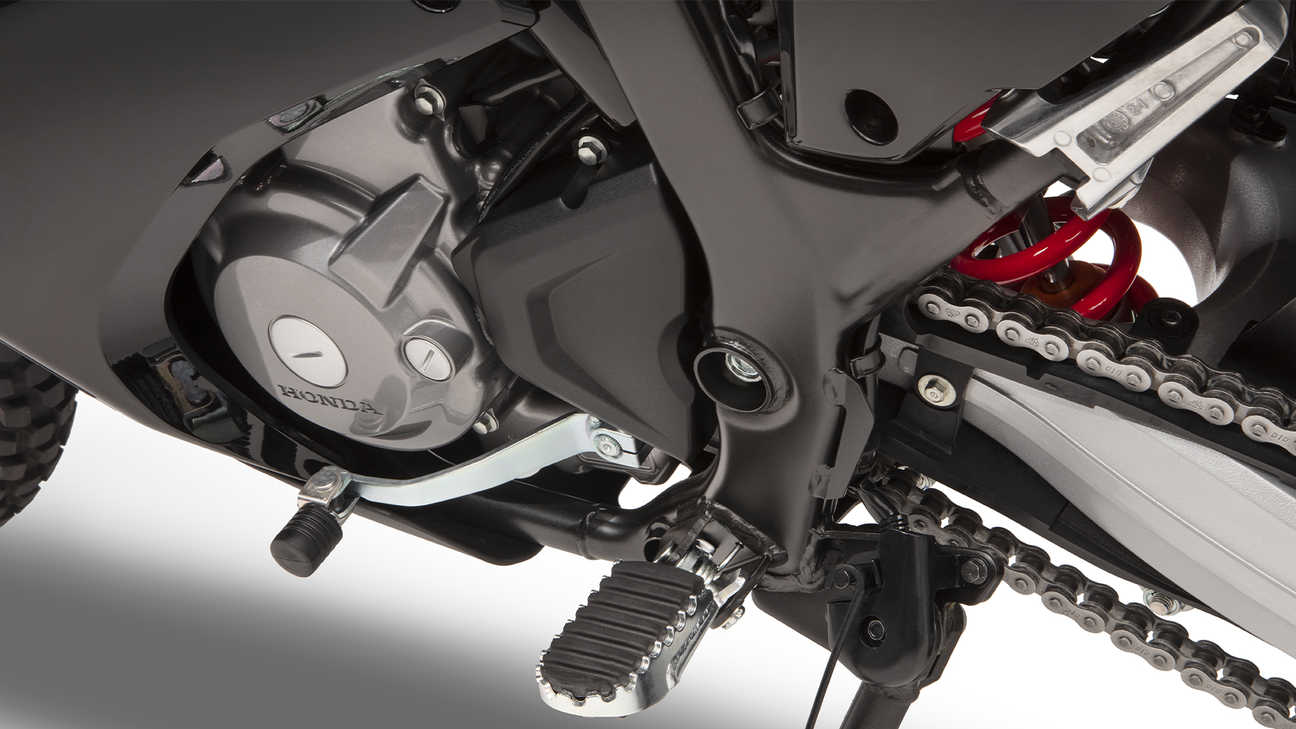

We’ve cut a total of 4kg out of the chassis thanks to a new frame design and lightweight tapered aluminium swingarm. A new forged aluminium bottom yoke also saves weight with improved stability. Improving off-road ability, there’s a total 285mm of ground clearance.

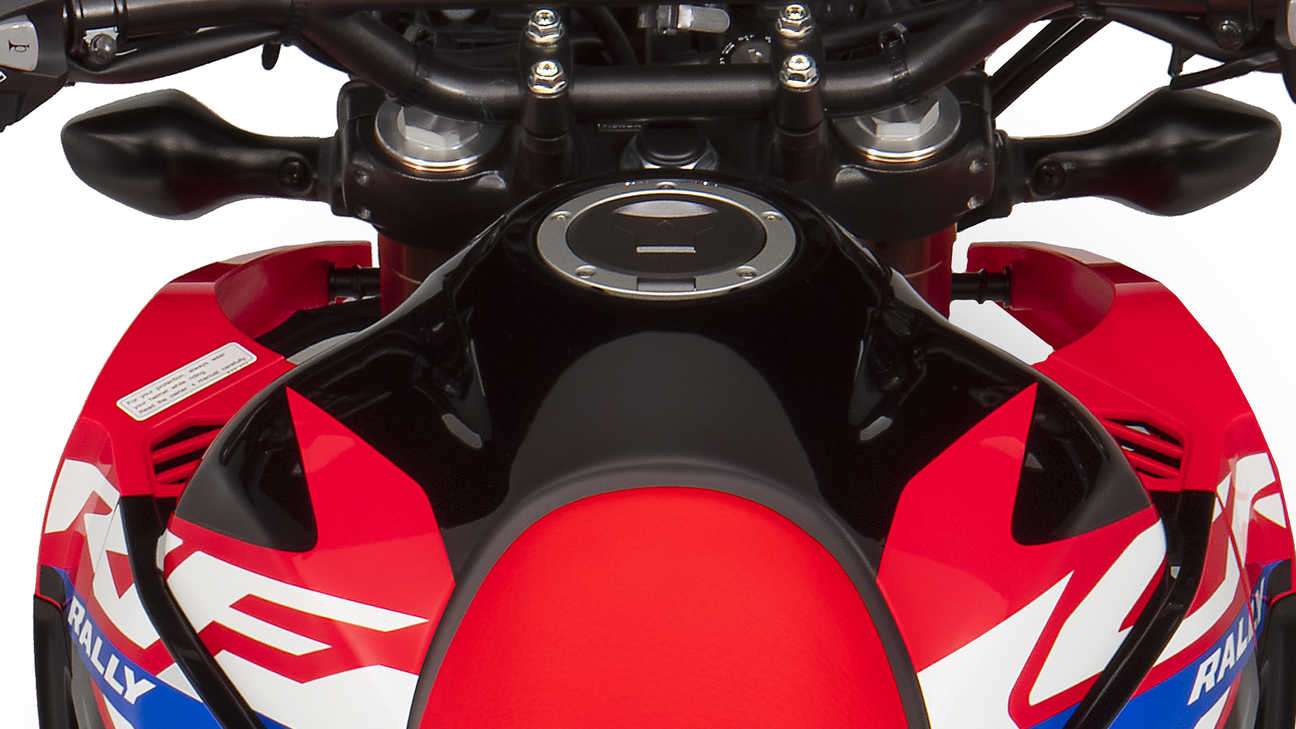

Slim, Lightweight bodywork
For natural control off-road you need to move freely. the redesigned 7.8l fuel tank is narrower and saves weight. Matched to the re-contoured sear, it allows easy weight transfer forward to elevate front tyre grip.
Flexible suspension setup

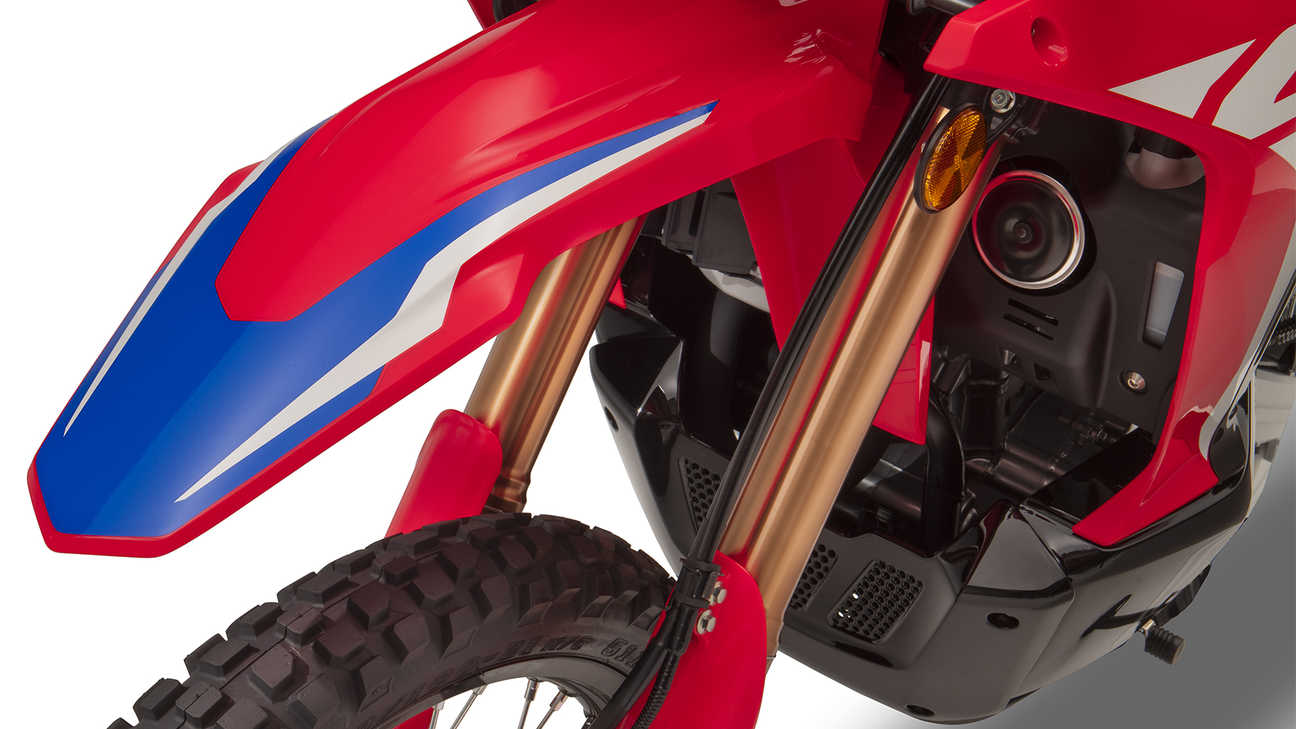

43mm Showa USD forks feature a spring rate and damping calibrated for both road and off-road riding. The rear single-tube Showa mono-shock, with 40mm diameter cylinder, operates through Pro-Link

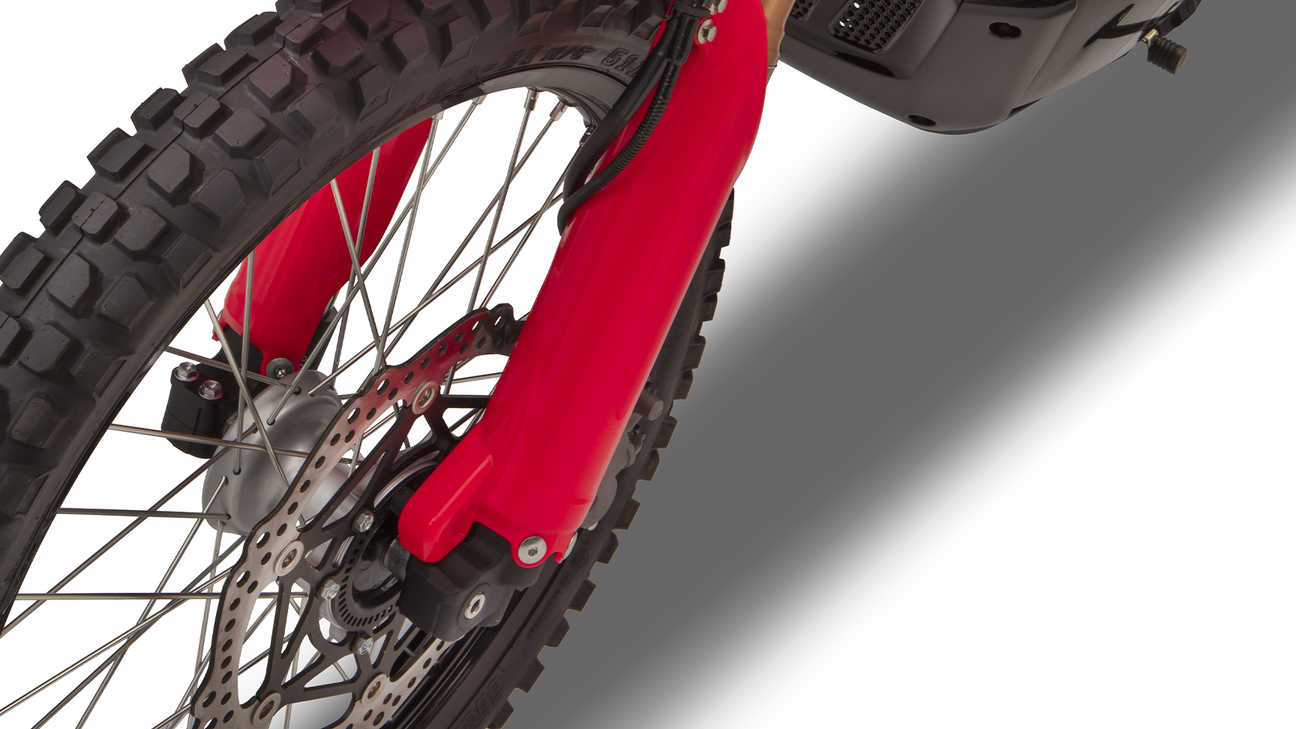

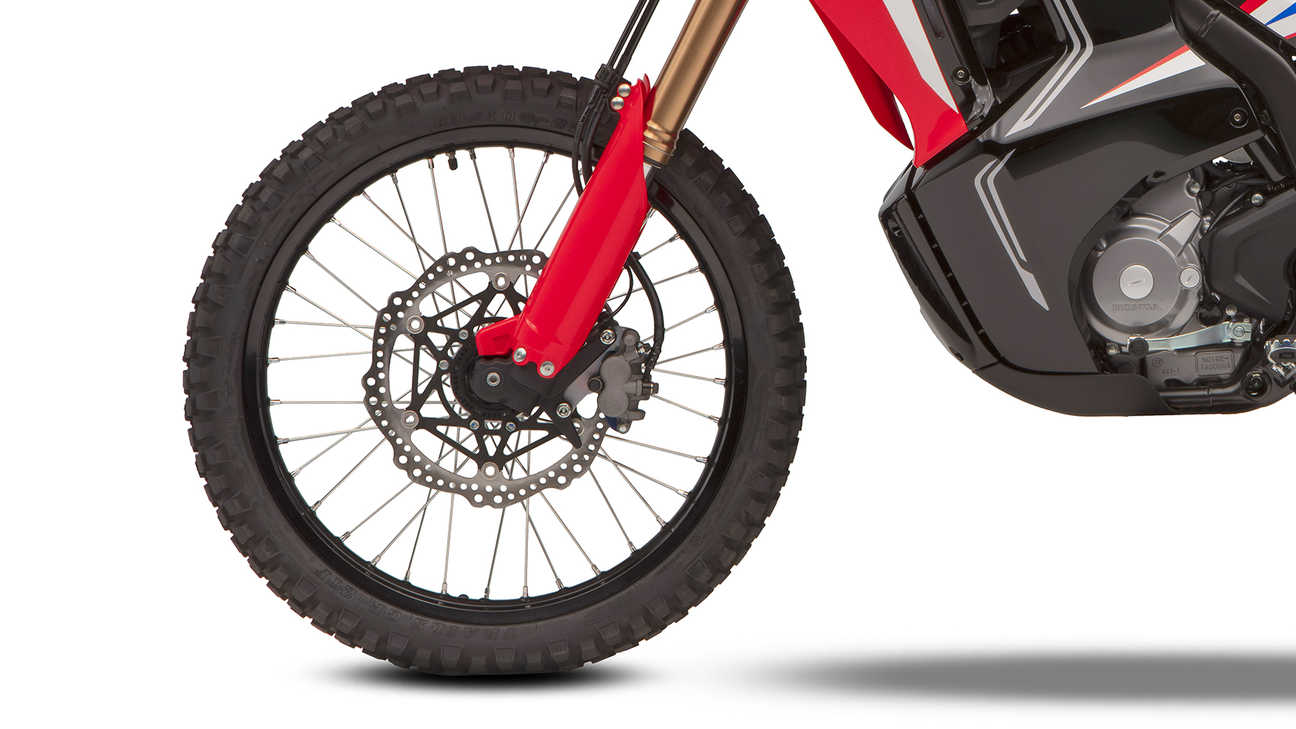

Floating front disc with ABS
For sensitive, powerful braking, the floating 256mm wavy disc is gripped by a two-piston calliper. Two-channel ABS allows the option to switch off the rear calliper for off-road riding.

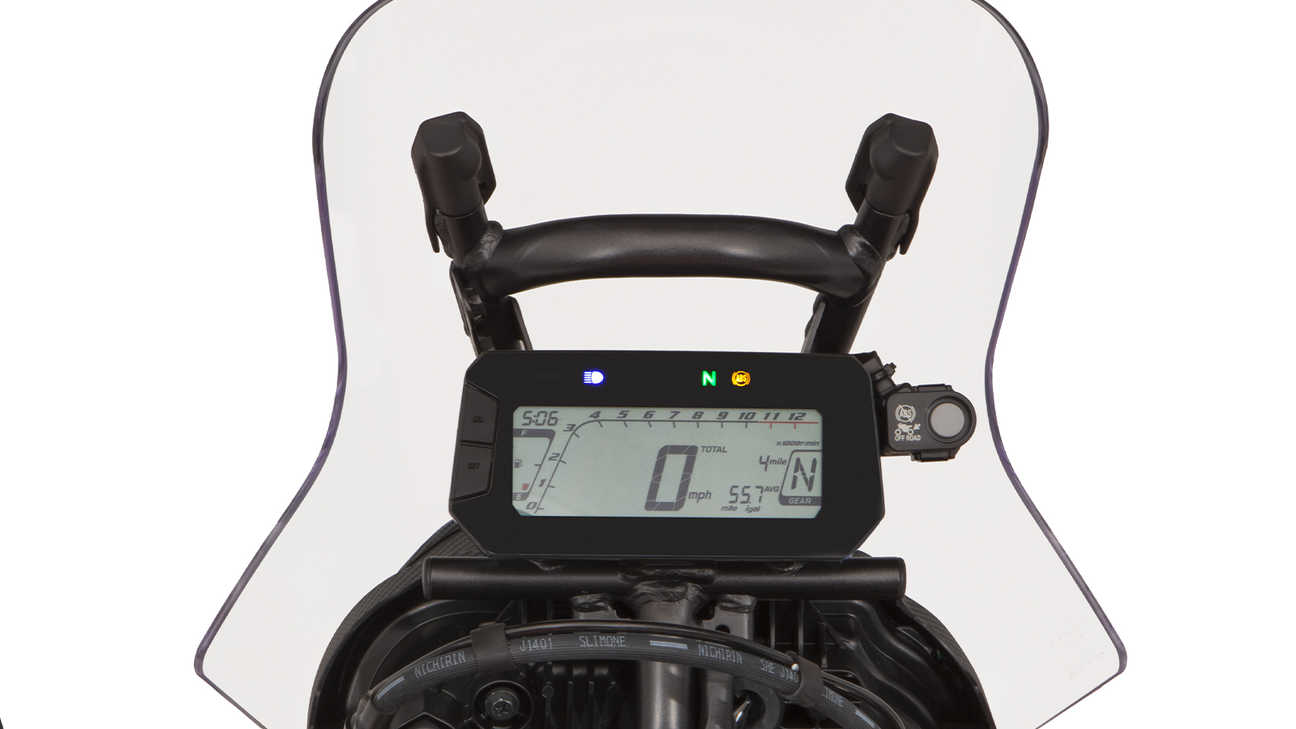

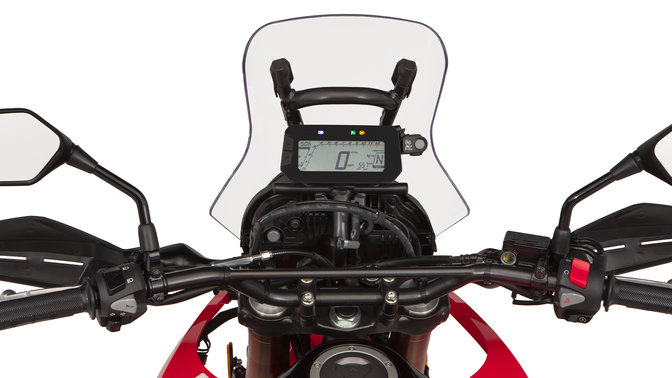

Comprehensive digital dash
Easy-to-read information is laid out clearly and features a speedometer, rec-counter, fuel gauge and clock, and now also a gear position indicator.
Bore × Stroke (mm) 76mm x 63mm
Carburation PGM-FI electronic fuel injection
Compression Ratio 10.7:1
Engine Displacement (cc) 286cc
Engine Type Liquid-cooled, Single, DOHC
Max. Power Output 20.1kW/8500rpm
Max. Torque 26.6Nm/6500rpm
C02 Emissions (g/km) 73 g/km
Oil Capacity (Litres) 1.8 L
Brakes Front 256 mm x 3.5mm disc with two piston caliper
Brakes Rear 220 mm x 4.5mm disc with single piston caliper
Suspension Front 43mm Telescopic Upsidedown
Suspension Rear Prolink
Tyre Size Front 80/100-21M/C 51P
Tyre Size Rear 120/80-18M/C 62P
Wheels Front Aluminium spoke
Wheels Rear Aluminium spoke
Dimensions and Weights
Battery Capacity (VAh) 12V-7AH
Caster Angle 27.5°
Dimensions (L×W×H) (mm) 2230 x 820 x 1200mm
Frame type Steel Semi-Double Cradle
Fuel Tank Capacity (Litres) 7.8 L
Fuel Consumption 32.3 km/L
Ground Clearance (mm) 285mm
Kerb Weight (kg) 142kg
Seat Height (mm) 880mm
Trail (mm) 109mm
Wheelbase (mm) 1455mm
Turning Radius 2.3m
Clutch Wet multiplate, Assist Sliper Clutch
Final Drive Chain
Transmission Type 6-speed
Instruments and Electrics
Tail Light Bulb
