Model Overview
The SH125i is built for life and features plenty of ever-useful storage space plus a USB socket. The rear suspension geometry is optimised for comfort, 16-inch wheels roll smoothly, while stylishly simple bodywork and front signature define and reinforce the SH125i’s presence. Full LED lighting and crisp LCD dash are premium finishing touches.
The EURO5-compliant four-valve eSP+ engine produces 9.6kW @ 8,250rpm power, 12Nm torque, returns 45.7km/l (WMTC mode) and features Idling Stop technology. HSTC (Honda Selectable Torque Control) to manage rear wheel traction is also a bonus for an owner’s peace of mind.
Five configurations are on offer:
- Standard SH125i without accessories
- SH125i with Smart top box

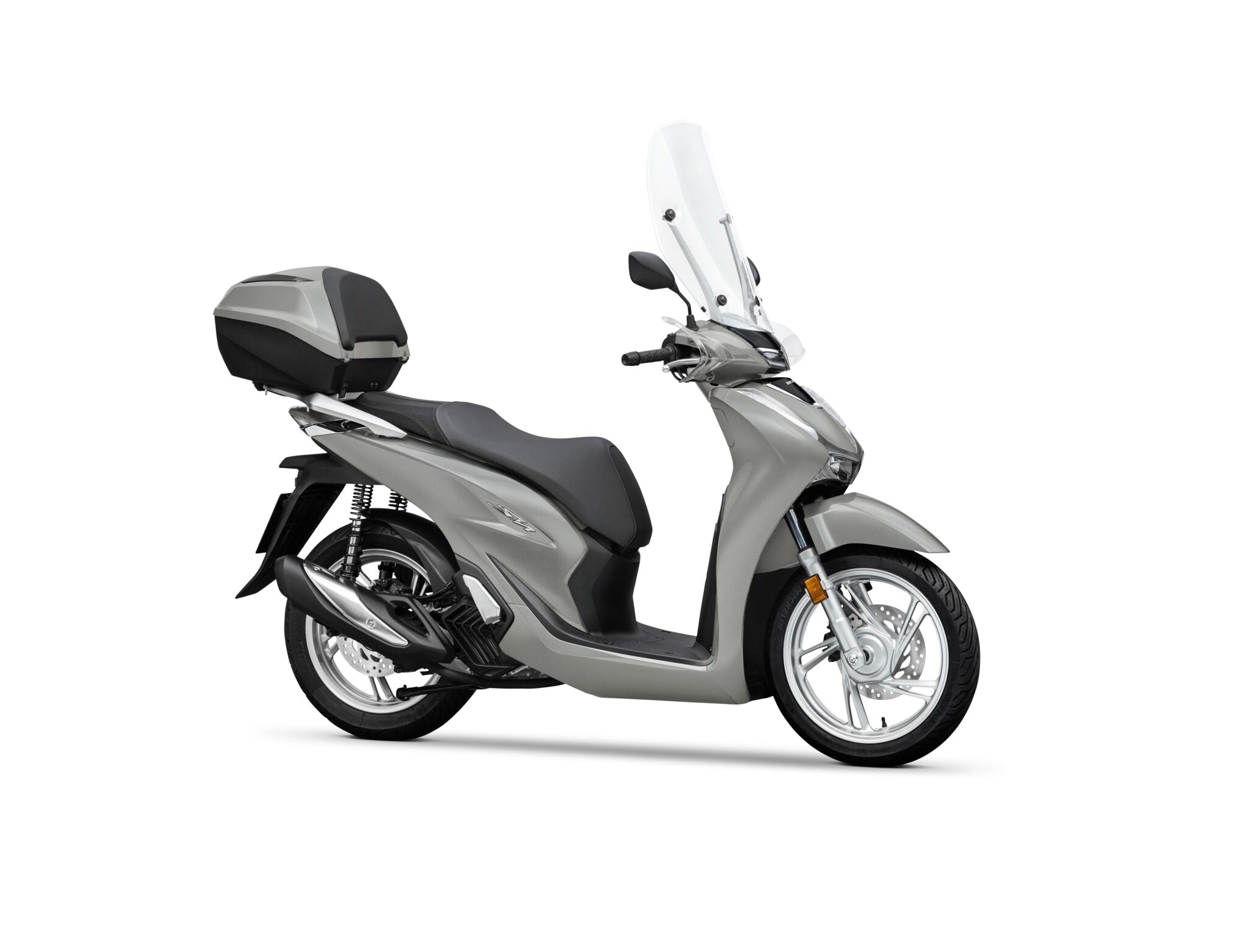

- SH125i with Smart top box, knuckle guards and windscreen
- SH125i with standard top box
- SH125i with standard top box, knuckle guards and windscreen.
For 23YM SH125i will be available in the following colour options:

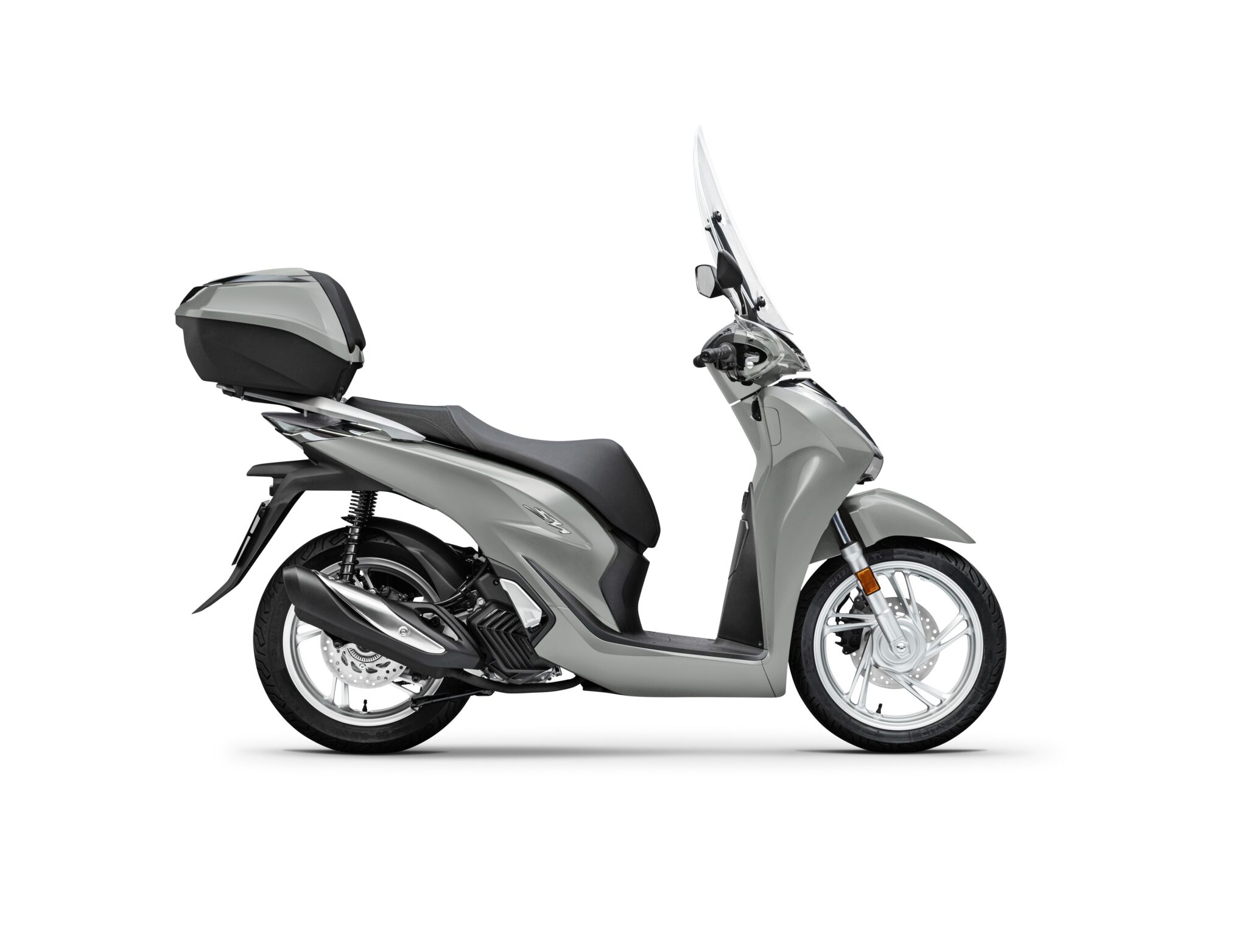

- Pearl Falcon Gray **NEW**

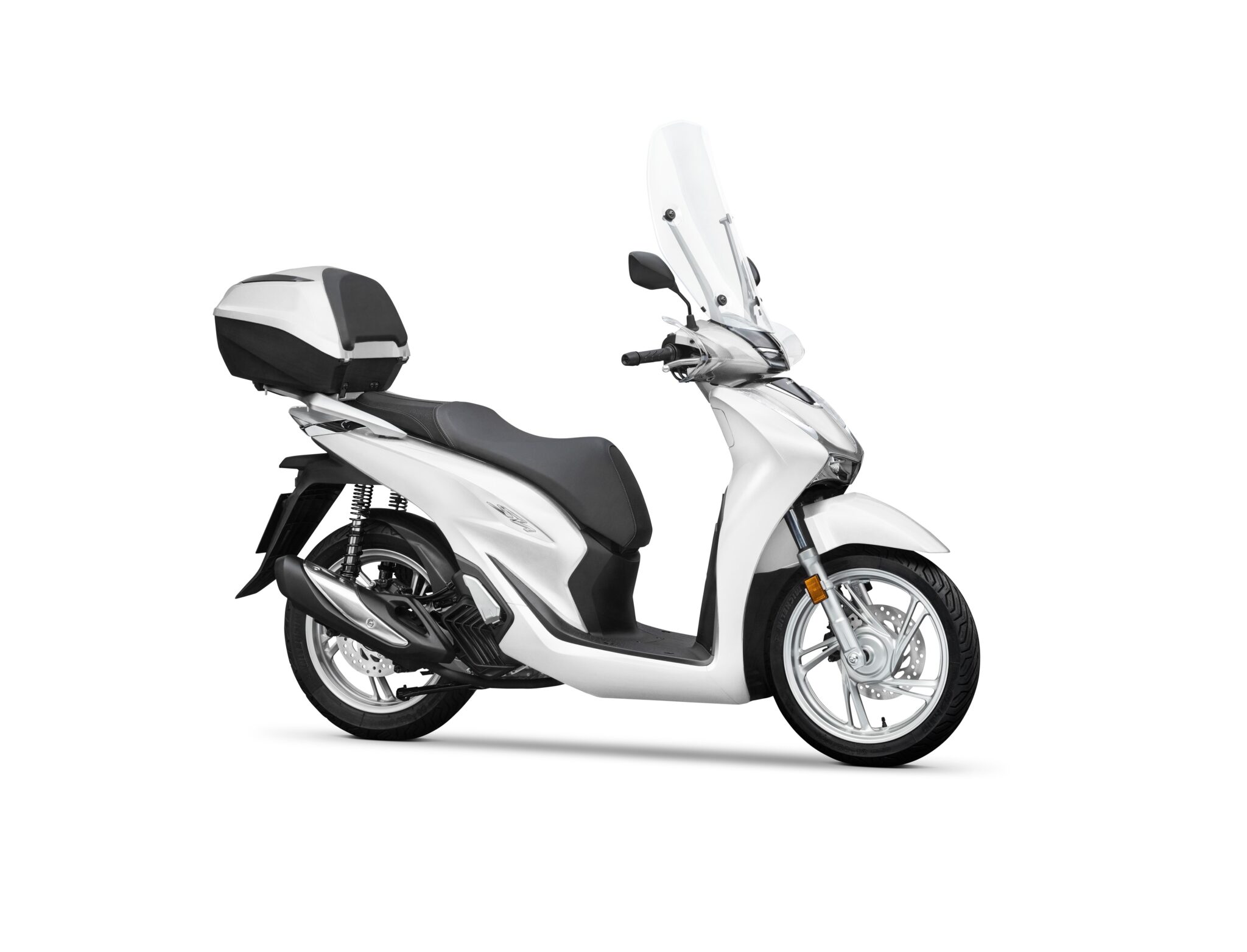

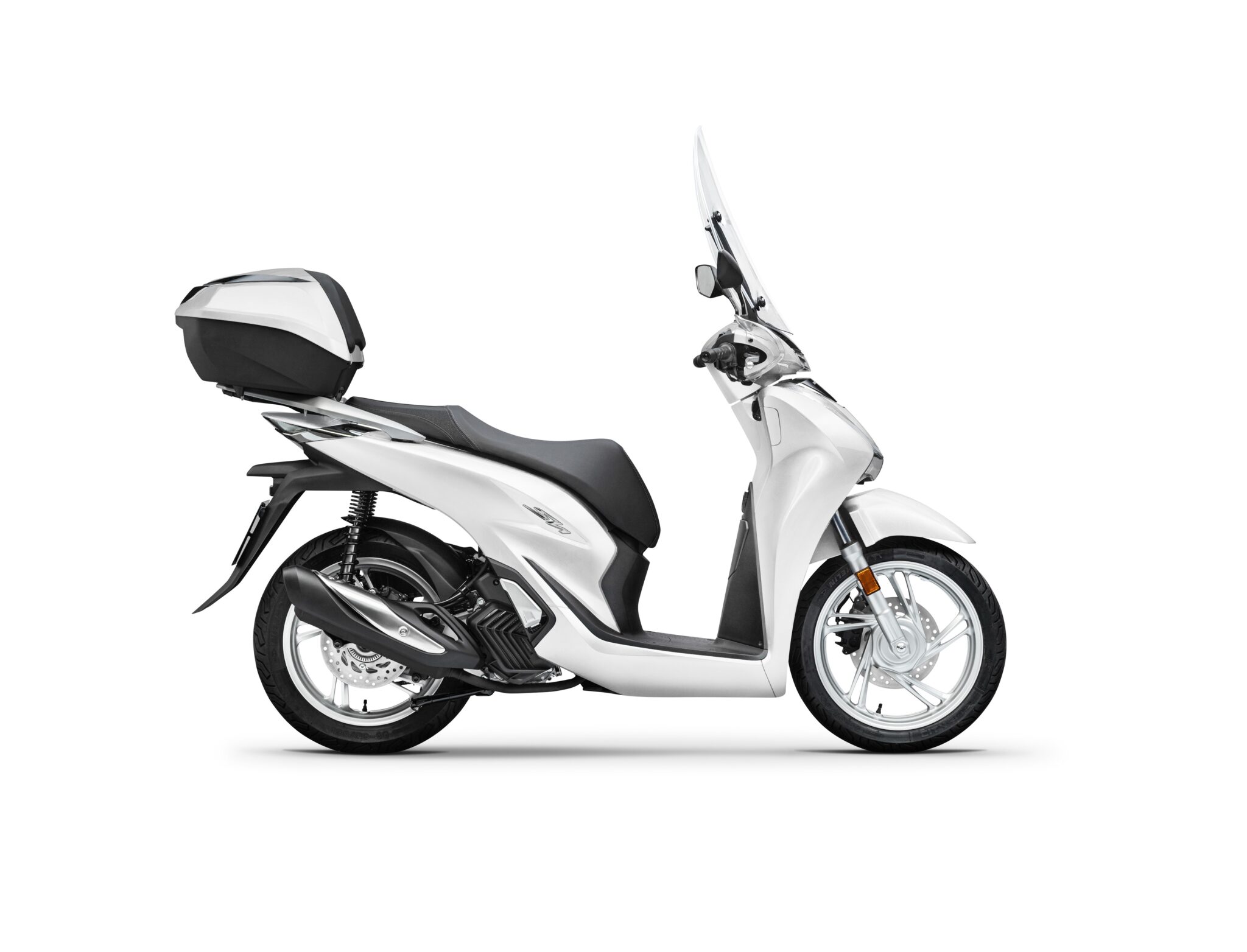

- Mat Pearl Cool White **NEW**
- Mat Pearl Pacific Blue **NEW**

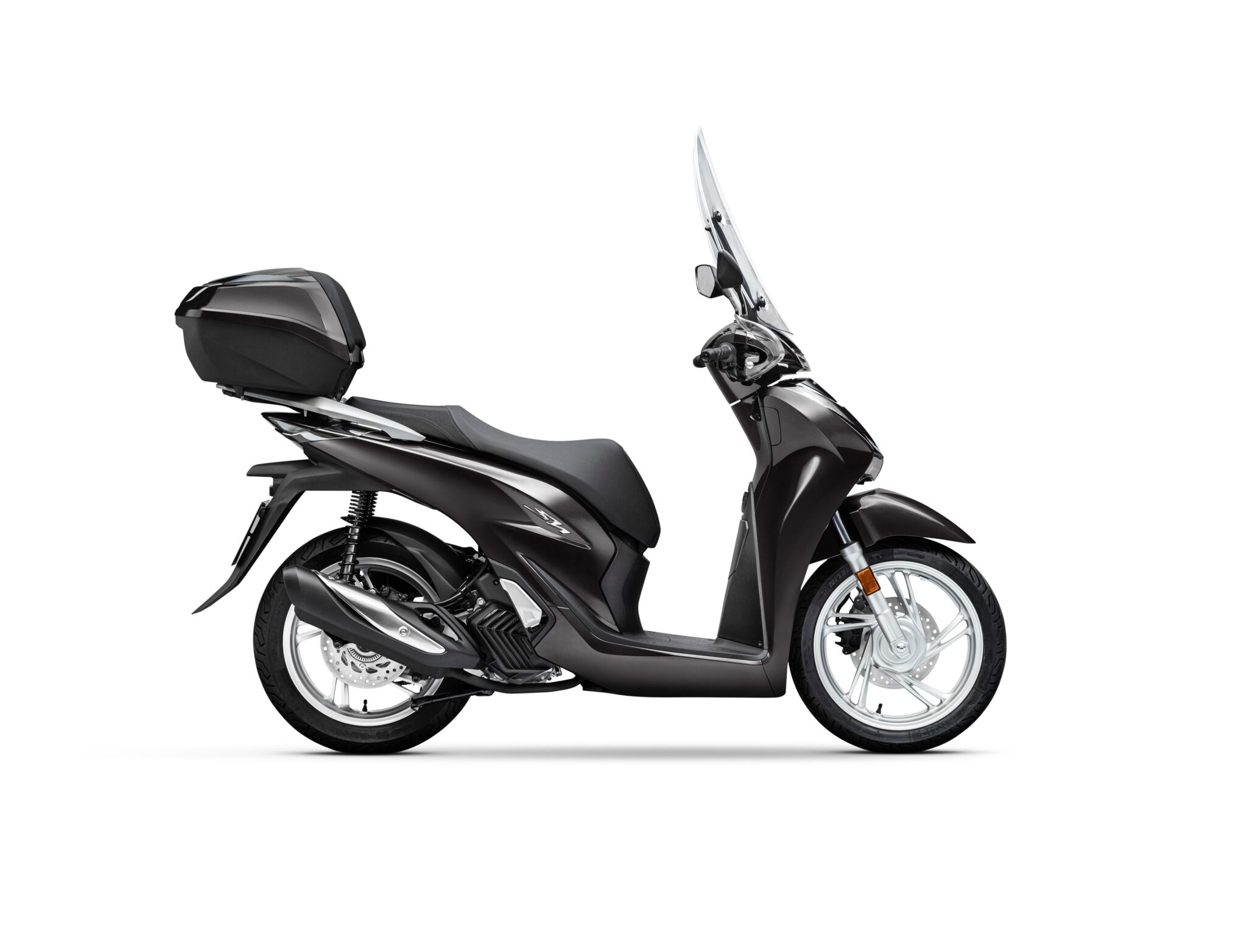

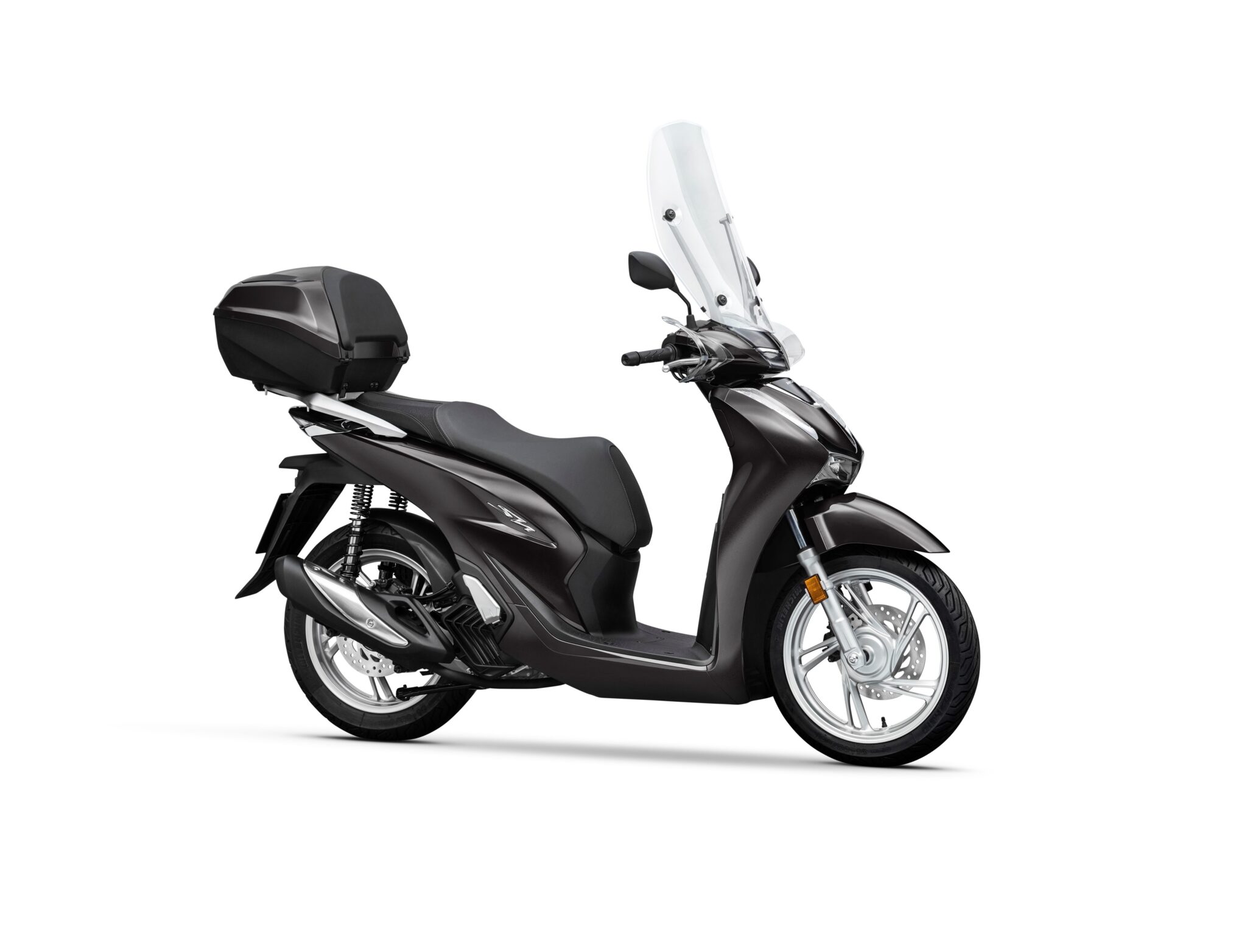

- Pearl Nightstar Black
Two brand-new colours with blacked out wheels add further contemporary appeal:

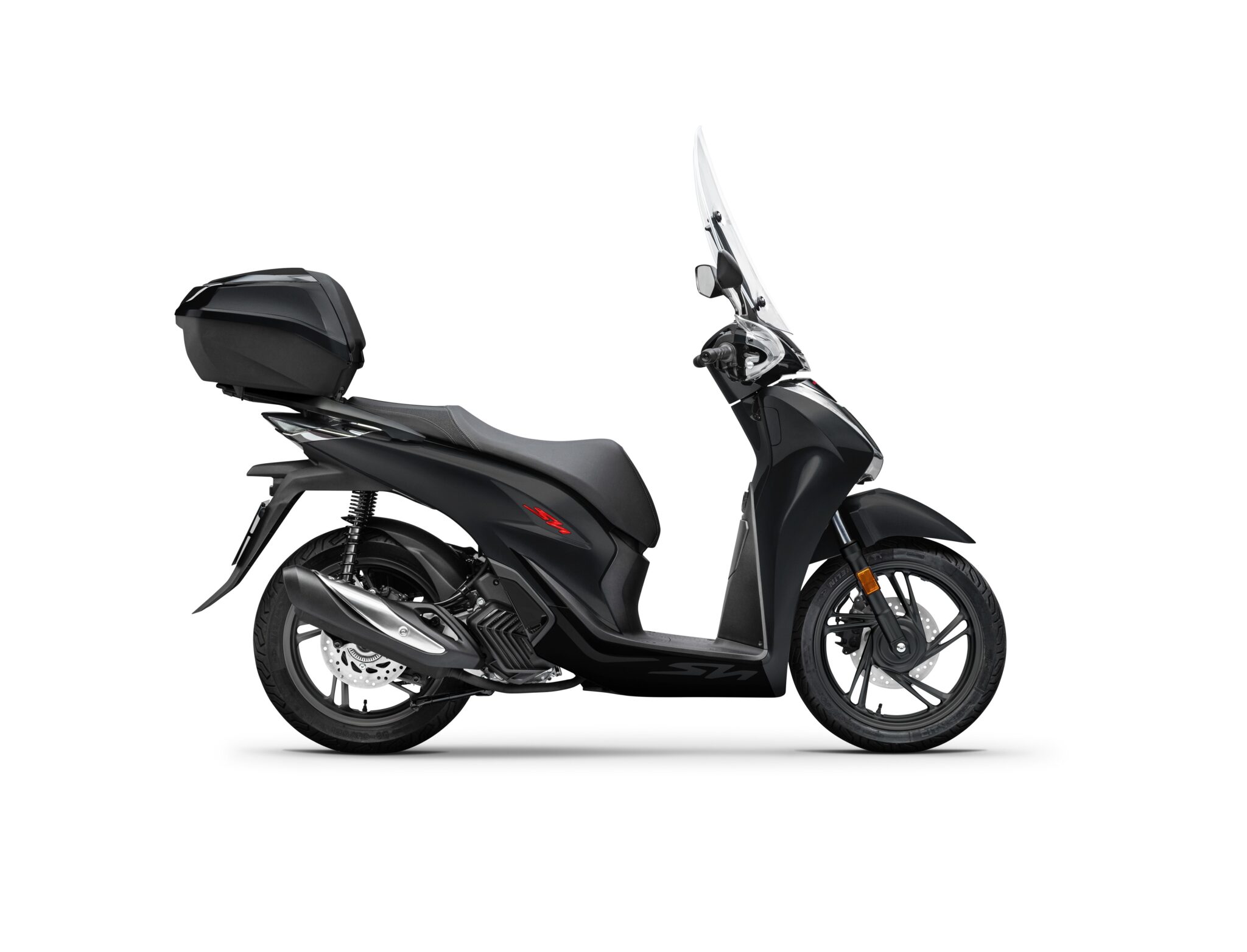

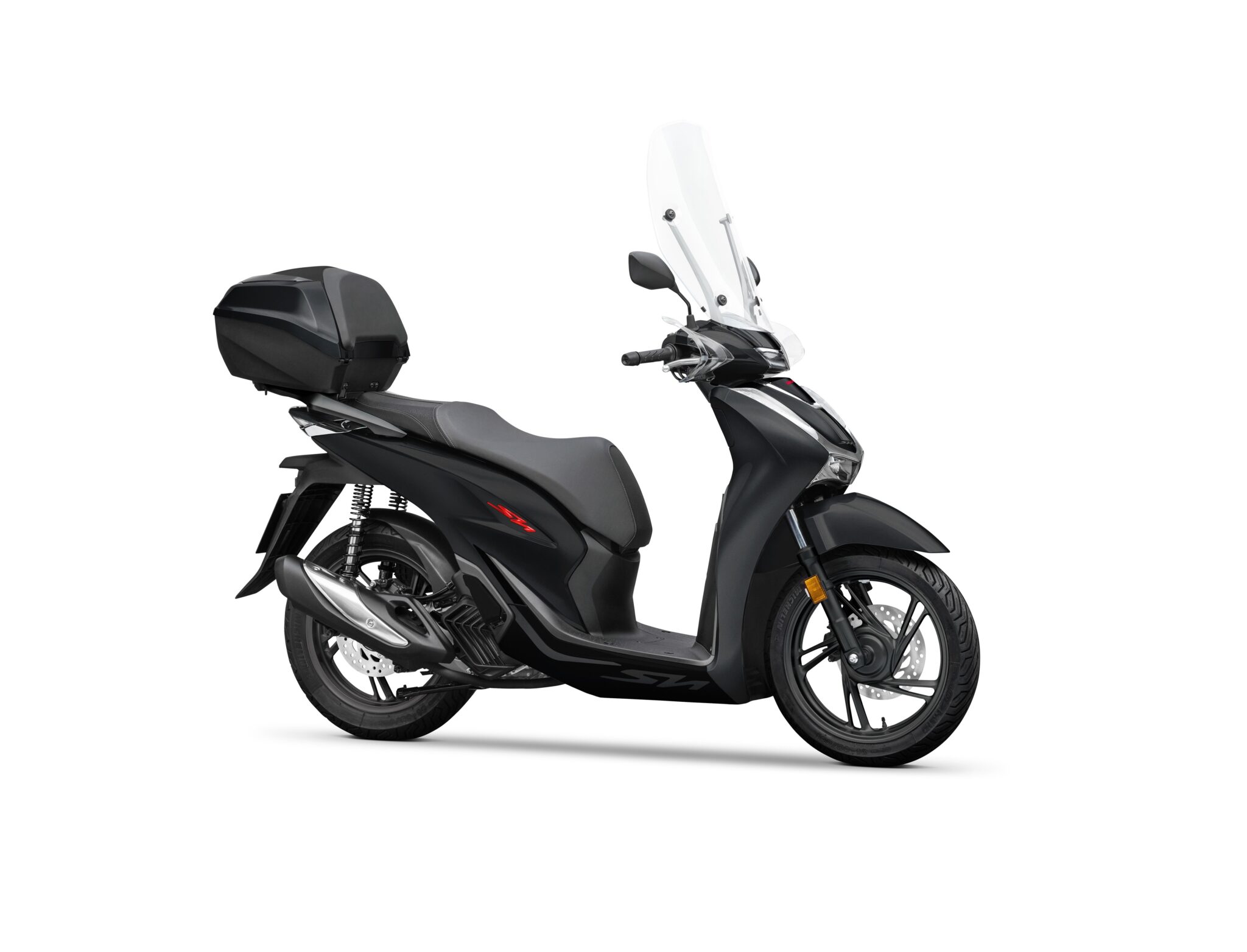

5. Coal Black **NEW** – with red SH logo on side fairing and large black SH logo on lower fairing

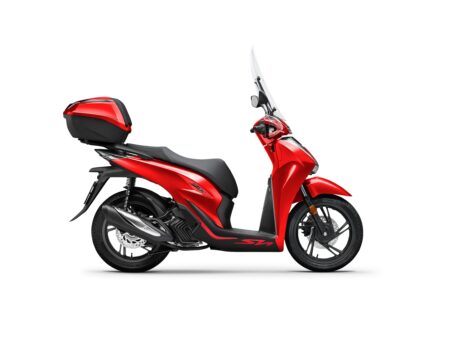

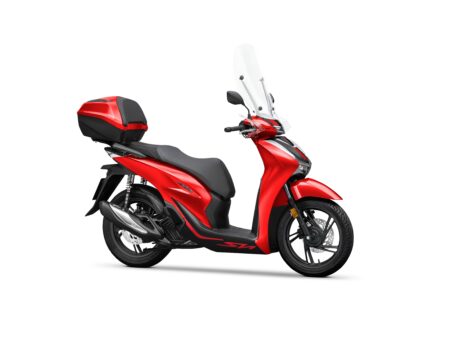

6. Hyper Red **NEW** – with black SH logo on side fairing and large red SH logo on lower fairing
Engine
- Four-valve eSP+ engine produces 9.6kW peak power and 12Nm torque
- Also employs Honda Selectable Torque Control (HSTC)
- Idling Stop and low-friction technologies
Chassis
- High-tensile tubular steel underbone frame
- Optimised rear suspension geometry ride comfort
- 16-inch front and rear wheels deliver sure-footed confidence
Styling & Equipment
- Stylish, SH signature flat-floored design
- 28L total under seat storage capacity, with USB socket
- All lighting LED with LCD instrument dash
Accessories
A range of genuine Honda accessories are available for the SH125i including:
- Colour matched 35L top box
- Colour matched 35L Smart top Box
- Windscreen
- Knuckle guards
- Outdoor Cover
- Cargo net
- Top box inner bag
Technical Specifications
|
ENGINE |
|
|
Type |
Liquid-cooled, 4-stroke SOHC |
|
Engine Displacement (cm³) |
125 cc |
|
No. of Valves per Cylinder |
4 |
|
Bore ´ Stroke (mm) |
53.5 x 55.5 |
|
Compression Ratio |
11.5:1 |
|
Max. Power Output |
9.6kW/8,250rpm |
|
Max. Torque |
12Nm/6,500rpm |
|
Oil Capacity |
1L |
|
Noise Level (dB) |
Lwot – 75.1 Lurban – 73.8 |
|
FUEL SYSTEM |
|
|
Carburation |
PGM-FI electronic fuel injection |
|
Fuel Tank Capacity |
7L |
|
Fuel Consumption |
45.7km/litre |
|
ELECTRICAL SYSTEM |
|
|
Starter |
Electric |
|
Battery Capacity |
12V7Ah |
|
ACG Output |
570w/5,000rpm |
|
DRIVETRAIN |
|
|
Clutch Type |
Automatic; centrifugal |
|
Transmission Type |
CVT |
|
Final Drive |
V-Belt |
|
FRAME |
|
|
Type |
Tubular steel underbone |
|
CHASSIS |
|
|
Dimensions (LxWxH) |
2,090mm x 730mm x 1,130mm |
|
Wheelbase |
1,350mm |
|
Caster Angle |
26° |
|
Trail |
85.2mm |
|
Seat Height |
799mm |
|
Ground Clearance |
145mm |
|
Kerb Weight |
133.9kg |
|
Turning radius |
2.05m |
|
SUSPENSION |
|
|
Type Front |
Telescopic 33mm |
|
Type Rear |
Dual-damper unit swing arm |
|
WHEELS |
|
|
Rim Size Front |
16M/C x MT2.50 |
|
Rim Size Rear |
16M/C x MT2.75 |
|
Tyres Front |
100/80-16 inch |
|
Tyres Rear |
120/80-16 inch |
|
BRAKES |
|
|
ABS System Type |
2 channel |
|
INSTRUMENTS & ELECTRICS |
|
|
Instruments |
Honda Smart Key, USB charger |
|
Headlight |
LED |
|
Taillight |
LED |
All specifications are provisional and subject to change without notice
** Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
