Model Overview
Alongside engine changes such as revised fuel injection settings and a new lighter radiator, the chassis benefits from the addition of Showa 41mm SFF-BP USD forks, dual Nissin radial mount four-piston calipers biting 296mm discs, lighter-weight 5-spoke wheels and redesigned swingarm – for improved high-speed handling and braking. Weight bias also moves fractionally forward for enhanced front tyre grip and feel.

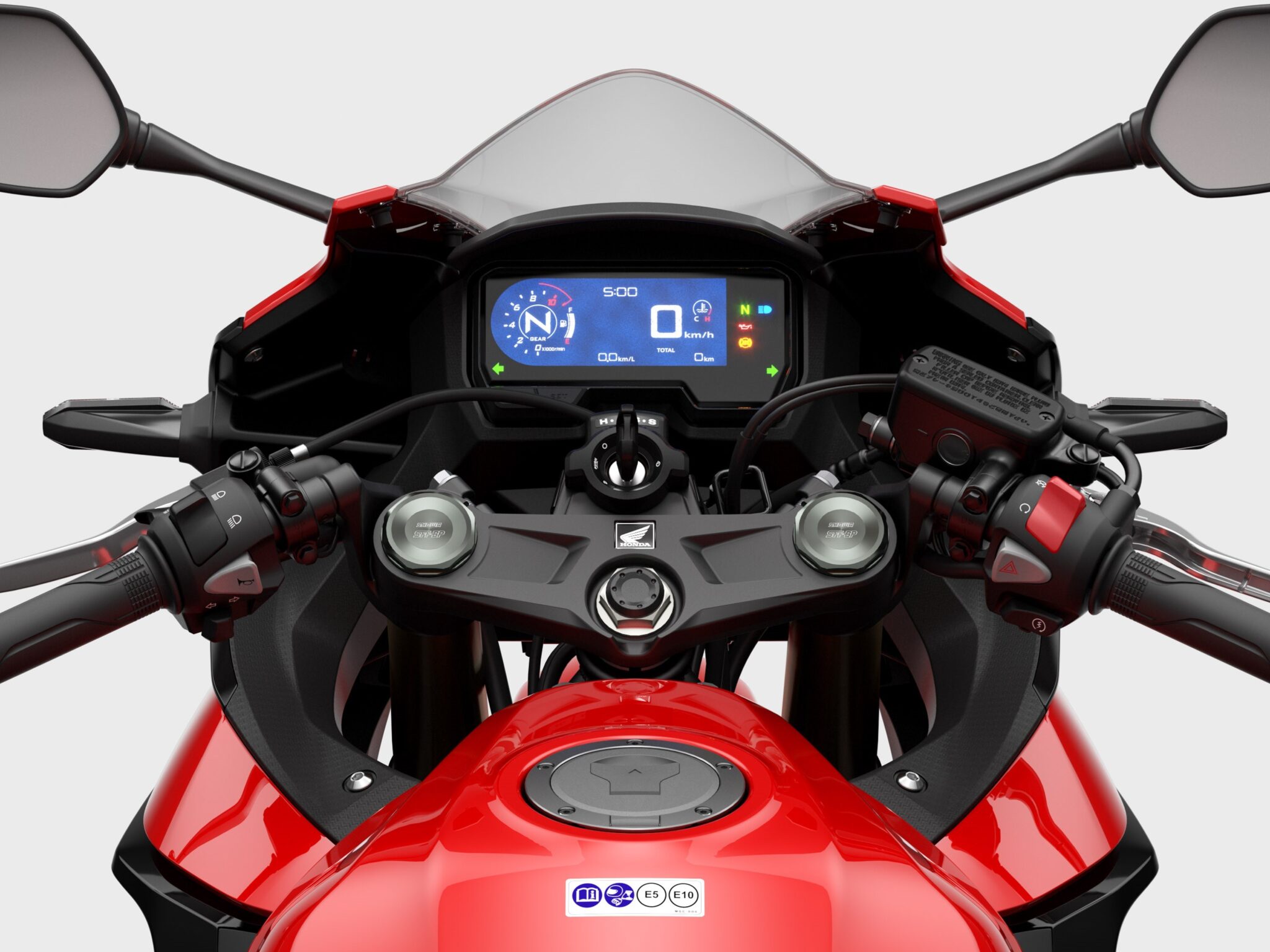

Styling is updated with a new front mudguard, inherited from the CBR650R, and sporty aluminium footpegs are also now standard fit. As before, LCD instruments feature a Shift Up and Gear Position function and all lighting is premium LED; the new headlight, also inherited from the CBR650R, now spreads a broader beam.

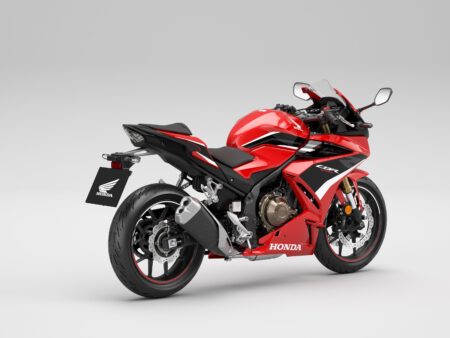

The 2022 CBR500R will be available in the following colour options:

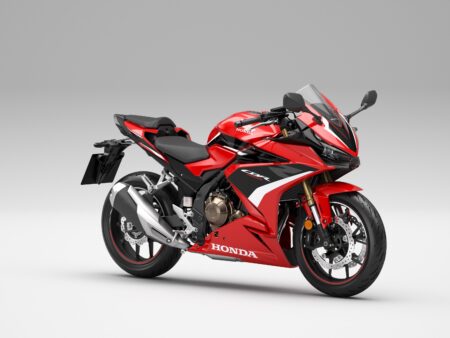

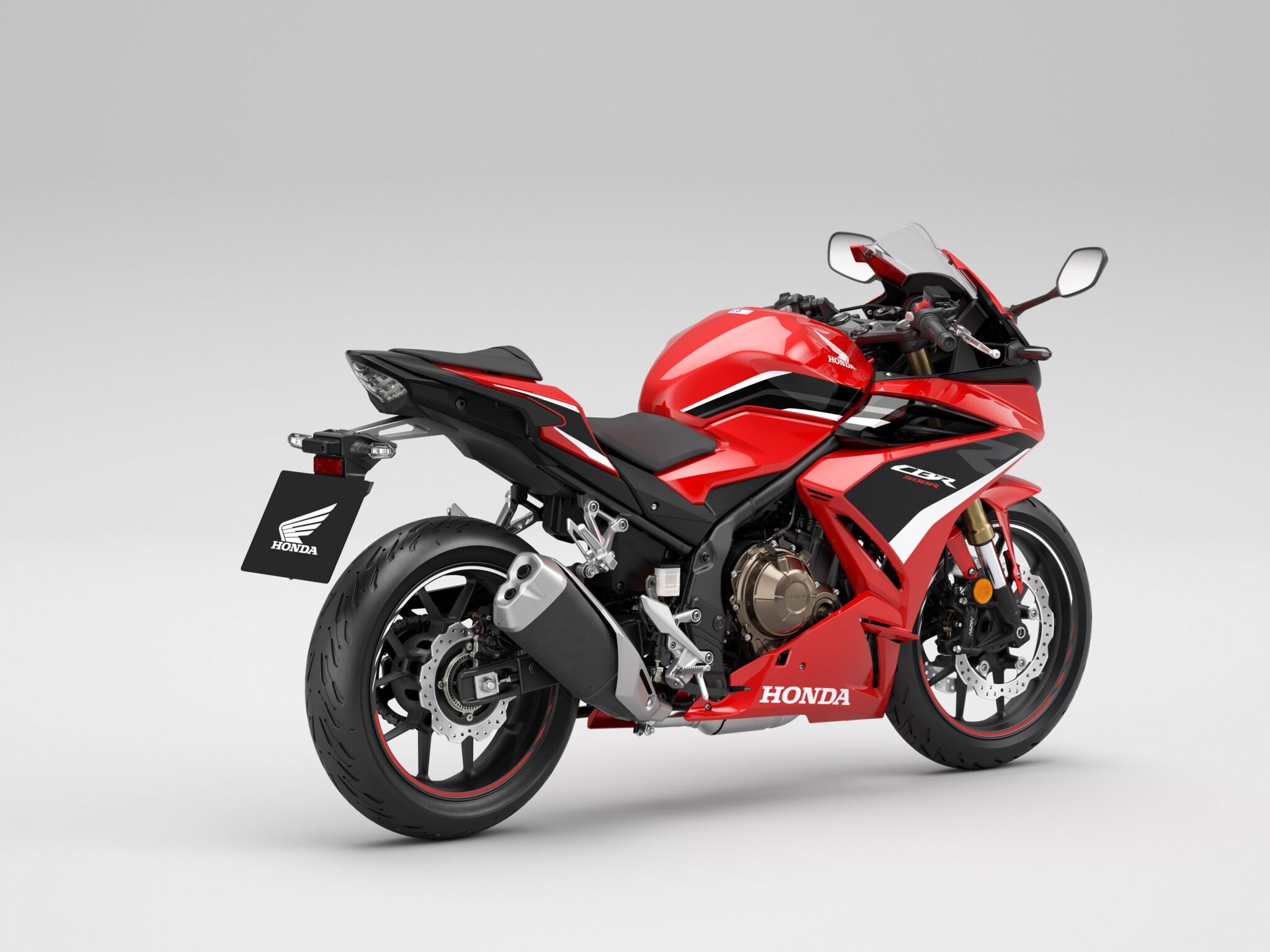

- Grand Prix Red

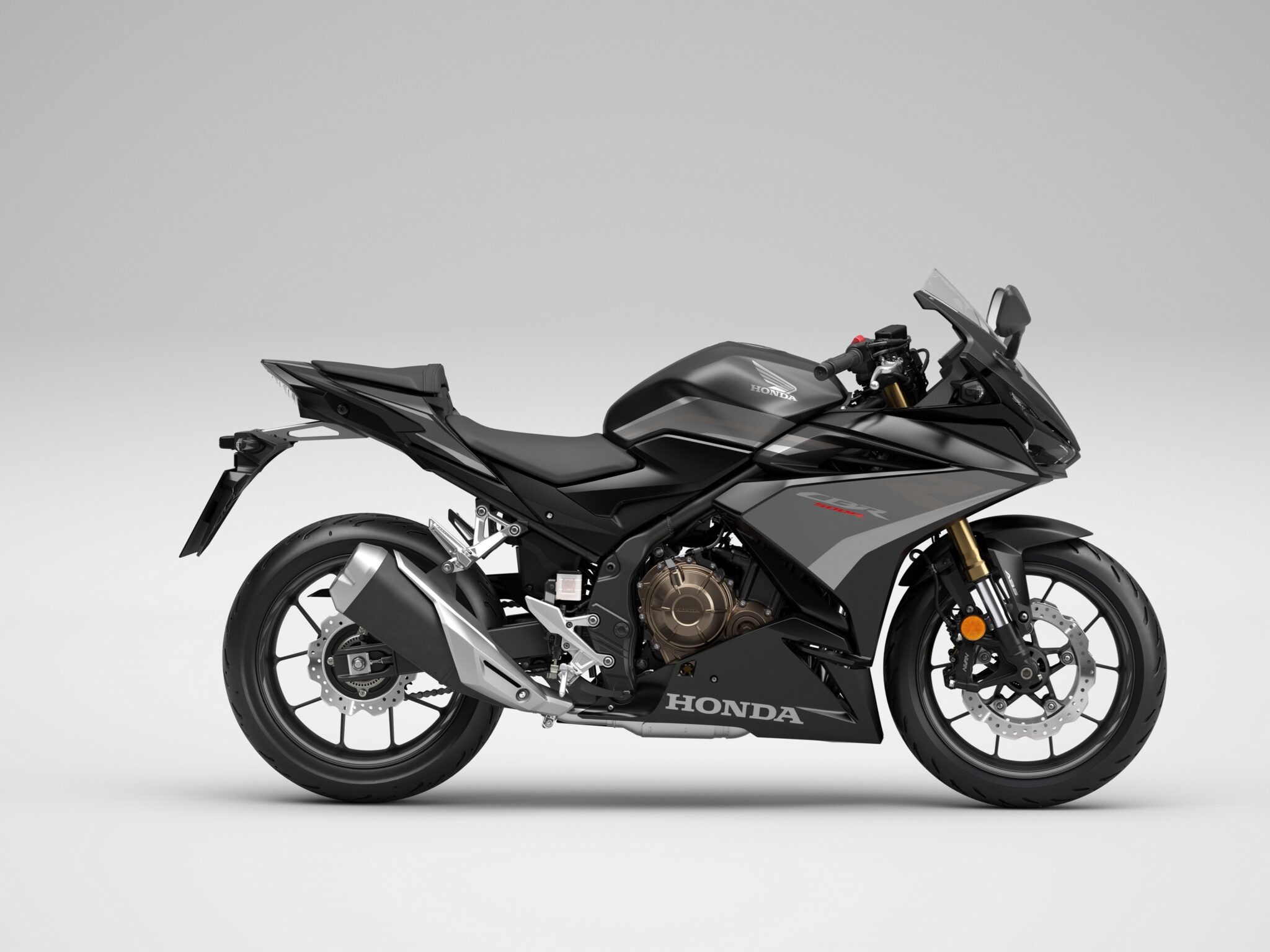

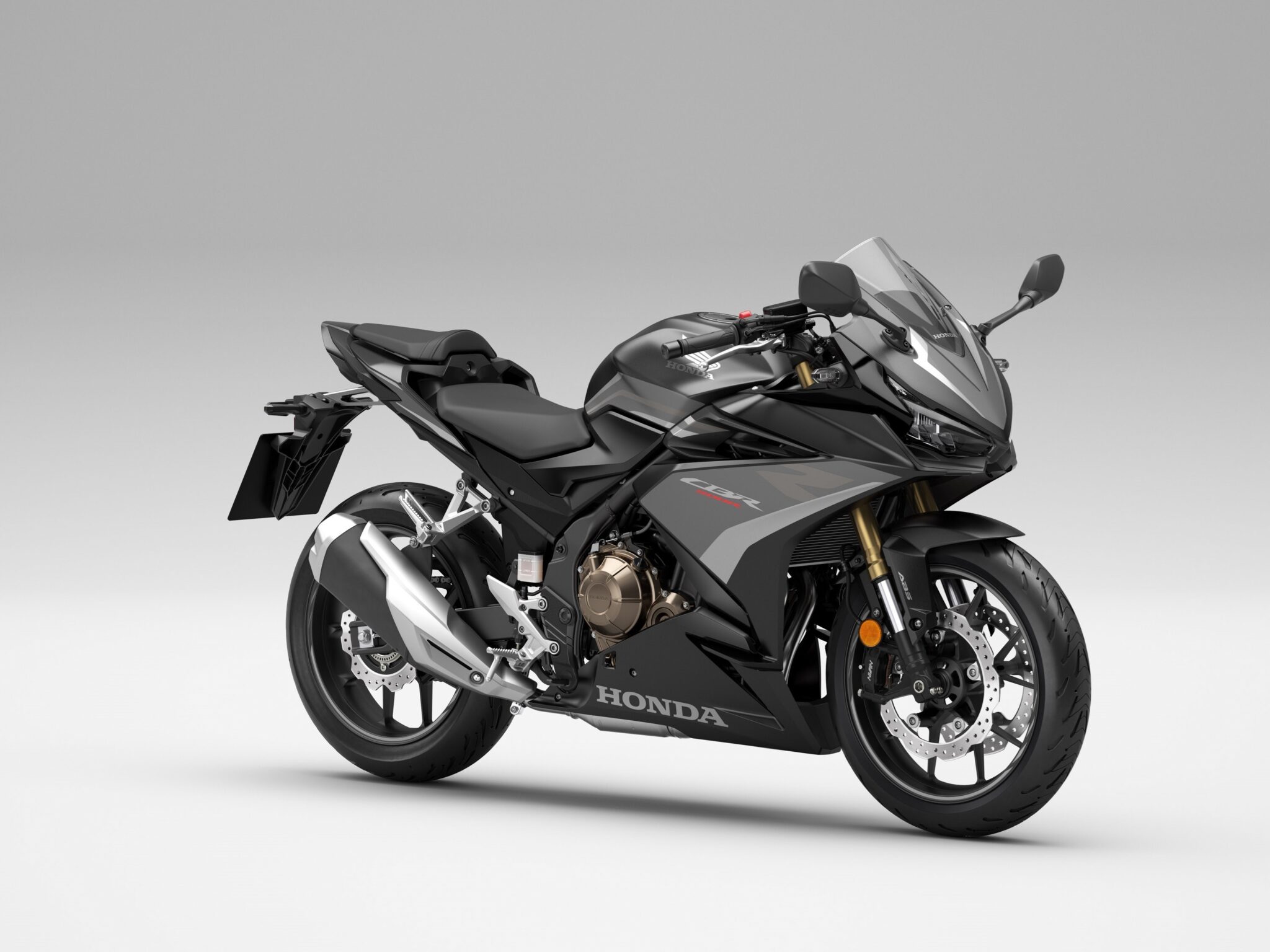

- Matt Gunpower Black Metallic
Chassis & Styling
- New 41mm Showa Separate Function Fork Big Piston (SFF-BP) USD forks
- New dual 296mm discs matched to Nissin radial mount four-piston calipers
- Lighter weight wheels and swingarm, plus aluminium footpegs
- Weight bias further forward for enhanced front end grip

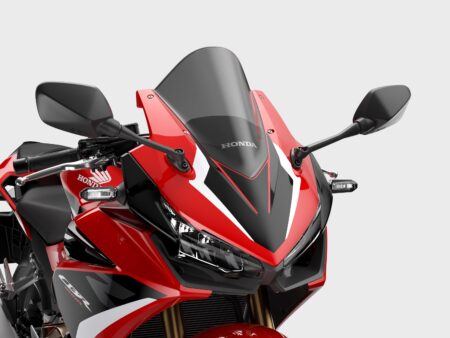

- New headlight inherited from the CBR650R
Engine
- Lively twin-cylinder powerplant delivers usable power and torque across the rev-range, plus sporty sound from its dual-exit muffler
- New PGM-FI settings improve torque feel and character
- New radiator design more stylish and lighter
- Assist/slipper clutch eases upshifts and manages downshifts
- Homologated for EURO5
Accessories
A range of Genuine Honda Accessories are available for the CBR500R. They include:
- 35L top box
- Rear carrier
- Tank bag
- Seat bag
- High smoke windscreen
- Heated grips
- 12V/USB Type-C sockets

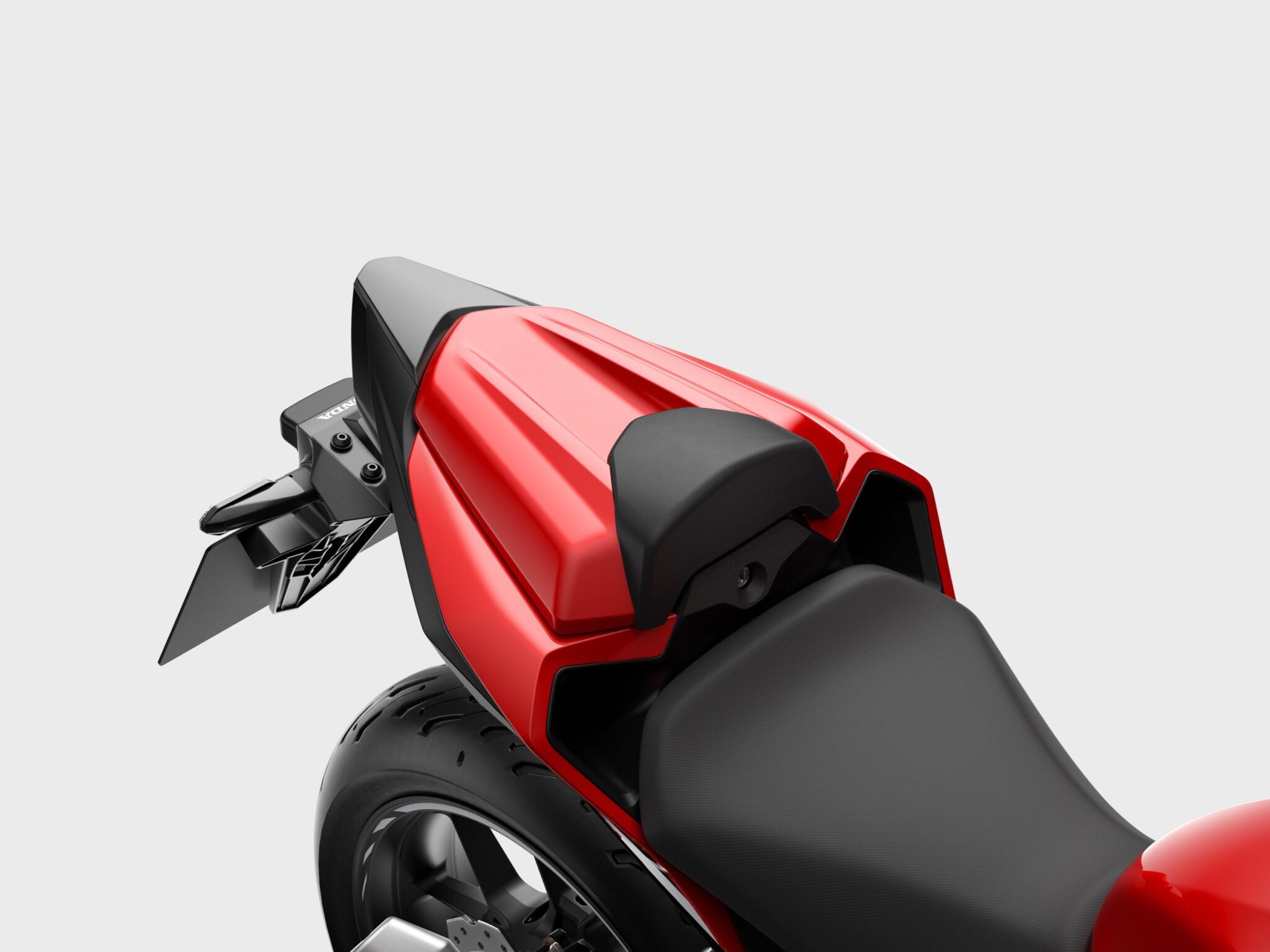

- Seat Cowl
- Wheel Stripes
- Tank Pad
Technical Specification
|
ENGINE |
|
|
Type |
Liquid-cooled 4 stroke, parallel twin |
|
Displacement |
471cc |
|
No of Valves per Cylinder |
4 |
|
Bore & Stroke |
67mm x 66.8mm |
|
Compression Ratio |
10.7: 1 |
|
Max. Power Output |
35kW @ 8600rpm |
|
Max. Torque |
43Nm @ 6500rpm |
|
Noise Level (dB) |
L-urban 74dB L-wot 76.4dB |
|
Oil Capacity |
3.2L |
|
FUEL SYSTEM |
|
|
Carburation |
PGM FI electronic fuel injection |
|
Fuel Tank Capacity |
17.1L (inc reserve) |
|
CO2 Emissions (WMTC) |
80 g/km |
|
Fuel Consumption (WMTC) |
3.5L/100km (28.6km/litre) |
|
ELECTRICAL SYSTEM |
|
|
Battery Capacity |
12V 7.4AH |
|
ACG Output |
23.4A/2000rpm |
|
DRIVETRAIN |
|
|
Clutch Type |
Wet multiplate, Assisted slipper clutch |
|
Transmission Type |
6 speed |
|
Final Drive |
Chain |
|
FRAME |
|
|
Type |
Steel diamond |
|
CHASSIS |
|
|
Dimensions (L´W´H) |
2080mm x 760mm x 1145mm |
|
Wheelbase |
1410mm |
|
Caster Angle |
25.5 degrees |
|
Trail |
102mm |
|
Seat Height |
785mm |
|
Ground Clearance |
130mm |
|
Kerb Weight |
192kg |
|
SUSPENSION |
|
|
Type Front |
Showa 41mm SFF-BP USD forks, |
|
Type Rear |
Prolink mono with 5 stage pre-load adjuster, Steel hollow cross swingarm |
|
WHEELS |
|
|
Type Front |
5Y-Spoke Cast Aluminium |
|
Type Rear |
5Y-Spoke Cast Aluminium |
|
Rim Size Front |
17 x MT3.5 |
|
Rim Size Rear |
17 x MT4.5 |
|
Tyres Front |
120/70ZR17M/C (58W) |
|
Tyres Rear |
160/60ZR17M/C (69W) |
|
BRAKES |
|
|
ABS System Type |
2-channel |
|
Type Front |
Dual 296mm x 4mm disc with Nissin radial-mount four-piston calipers |
|
Type Rear |
Single 240mm x 5mm disc with single piston caliper |
|
INSTRUMENTS & ELECTRICS |
|
|
Instruments |

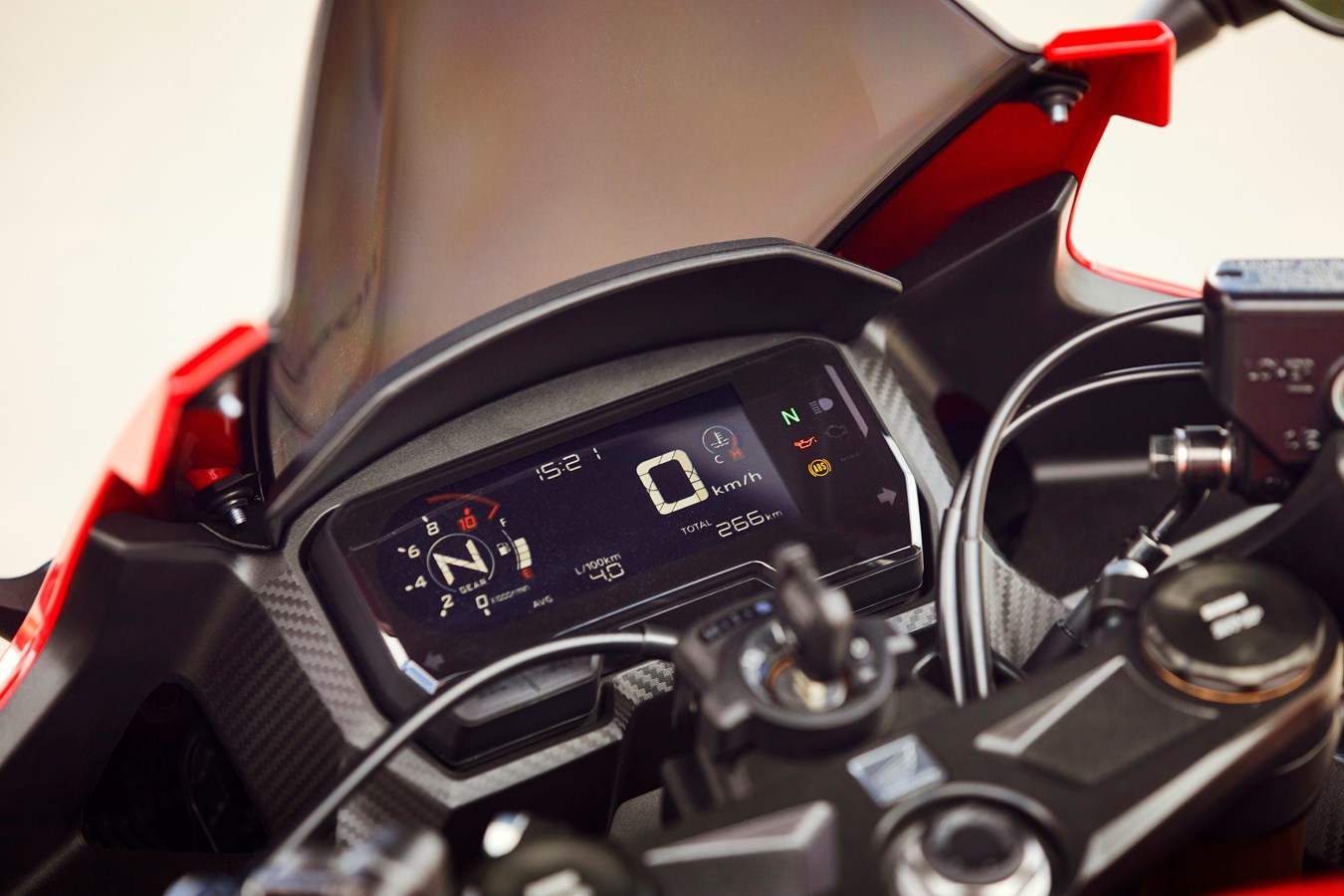

LCD Meter with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift Up Indicator |
|
Headlight |
LED |
|
Taillight |
LED |
|
Security System |
HISS (Honda Intelligent Security System) |
|
Additional Features |
ESS |
All specifications are provisional and subject to change without notice.
** Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
