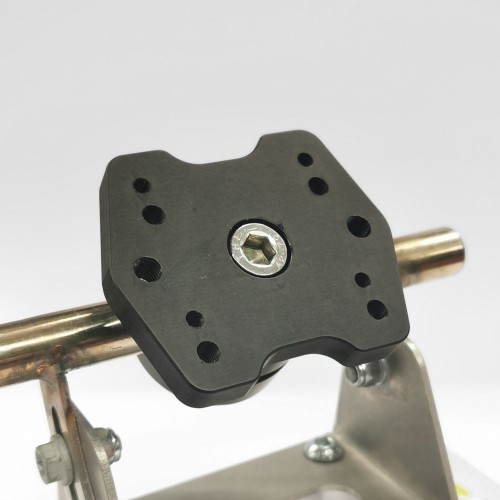

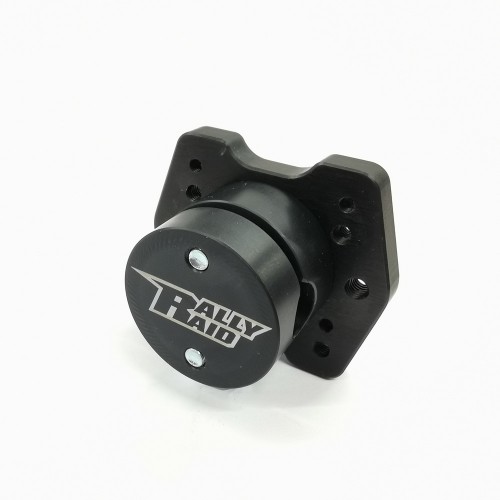

Rally Raid Billet Multi-Mount for 12mm (1/2″) Crossbar – RRP 643


Rally Raids Multi-Mount is the answer to mounting your Garmin Rugged Mount  or RAM mounts. Designed and developed primarily for Yamaha T7 Tenere & Honda CB500X 2019 (with crossbar), it will fit any other motorcycle with 1/2″ or 12mm diameter bar.
This heavy duty mount suits 12mm or 1/2″ (12,7mm) diameter cross bars, using a modular design to allow the top plate to be used in both portrait and landscape mode.
SKU: N/A Category:


Perfect for those who want a more secure, permanant fixture for their cockpit area. Our design allows fitment without needing to access the rear of the piece like many other designs.
This means no more removing screens, or plastics to fix or remove your GPS mount or Ram equipment.
Machined from 6082T6 Aluminium, finished with a hard black anodise and laser etched.
Features M4 & M5 tapped holes, M4 threaded holes are for AMPS(Garmin) system 1-1/2″ x 1-3/16″ (38.1 x 30.2mm) hole centres.
M5 threaded holes will need drilling out to 5,5mm to suit the M5 screws that locate into the Tom Tom GPS mount.

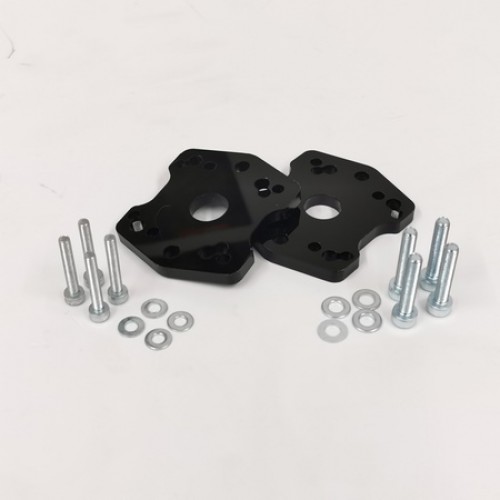

Supplied with fixings for mount only.

Additional information


Without Spacer, Spacer
