Model Overview
The CRF1100L Africa Twin is a motorcycle focused on core off-road ability with the look – and feel – of a true rally machine. Slim and lightweight, its 1,084cc parallel twin cylinder engine produces 75kW power with 105Nm torque, while the steel frame is the foundation of its handling prowess; it also uses a bolt-on aluminium subframe. The aluminium swingarm references that of the CRF450R moto-crosser.
At the centre of the Africa Twin, a six-axis Inertial Measurement Unit (IMU) controls not only the 7-level HSTC but also 3-level Wheelie Control, Cornering ABS (with off-road setting), Rear Lift Control and enhanced DCT cornering detection. There are four default riding modes: URBAN, TOUR, GRAVEL and OFF-ROAD.
Tailored for complete control, the riding position features a slim-section seat and high-set handlebars. Dual LED Daytime Running Lights (DRL) give optimum visibility, improving safety. Cruise control is standard-fit. A full colour Multi Information Display (MID) 6.5-inch TFT touch screen brings immersive engagement with the machine’s systems, plus Apple CarPlay®, Android Auto® and Bluetooth connectivity.
For 23YM CRF1100L Africa Twin will be available in the following paint options:
- Grand Prix Red

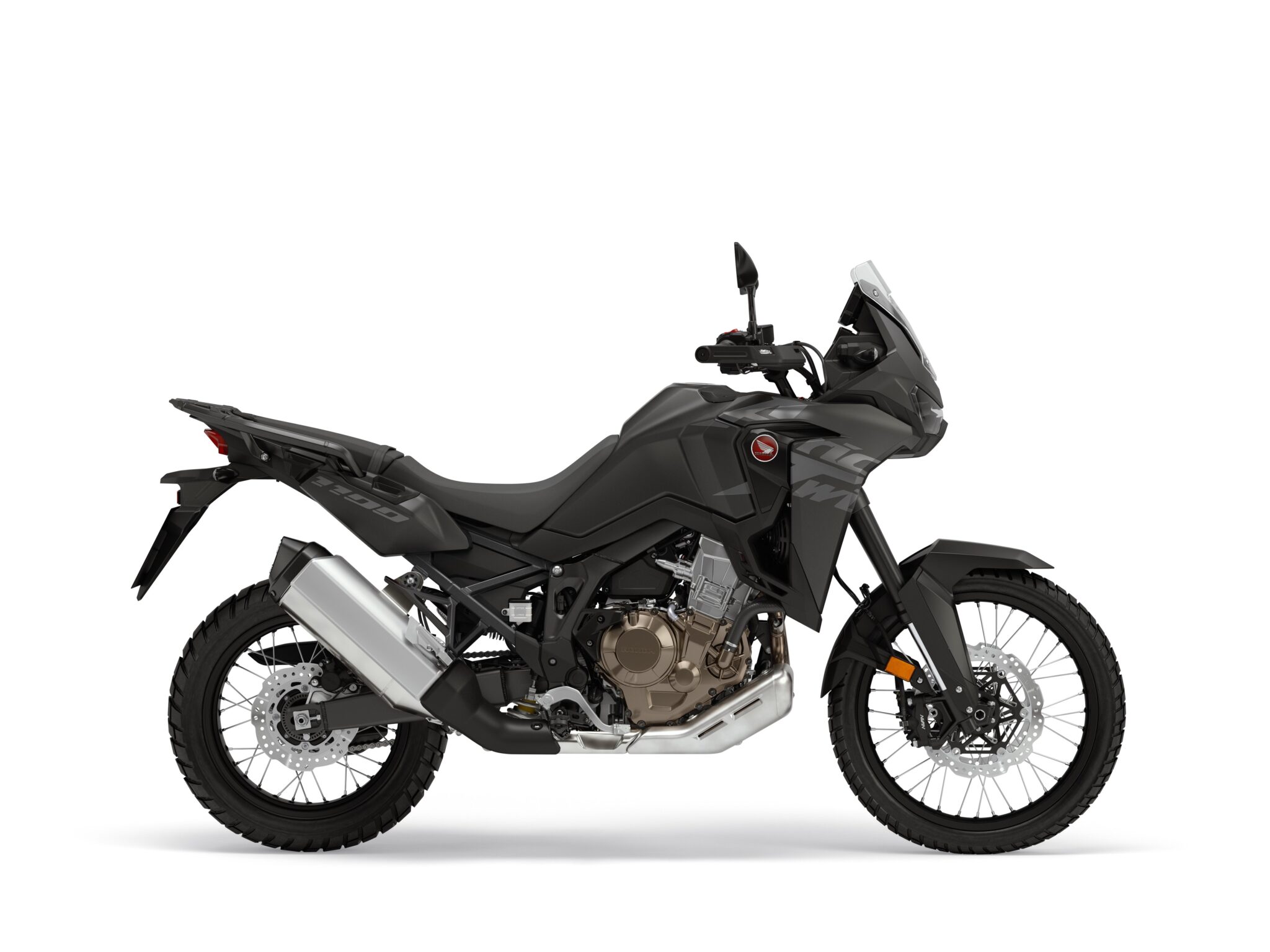

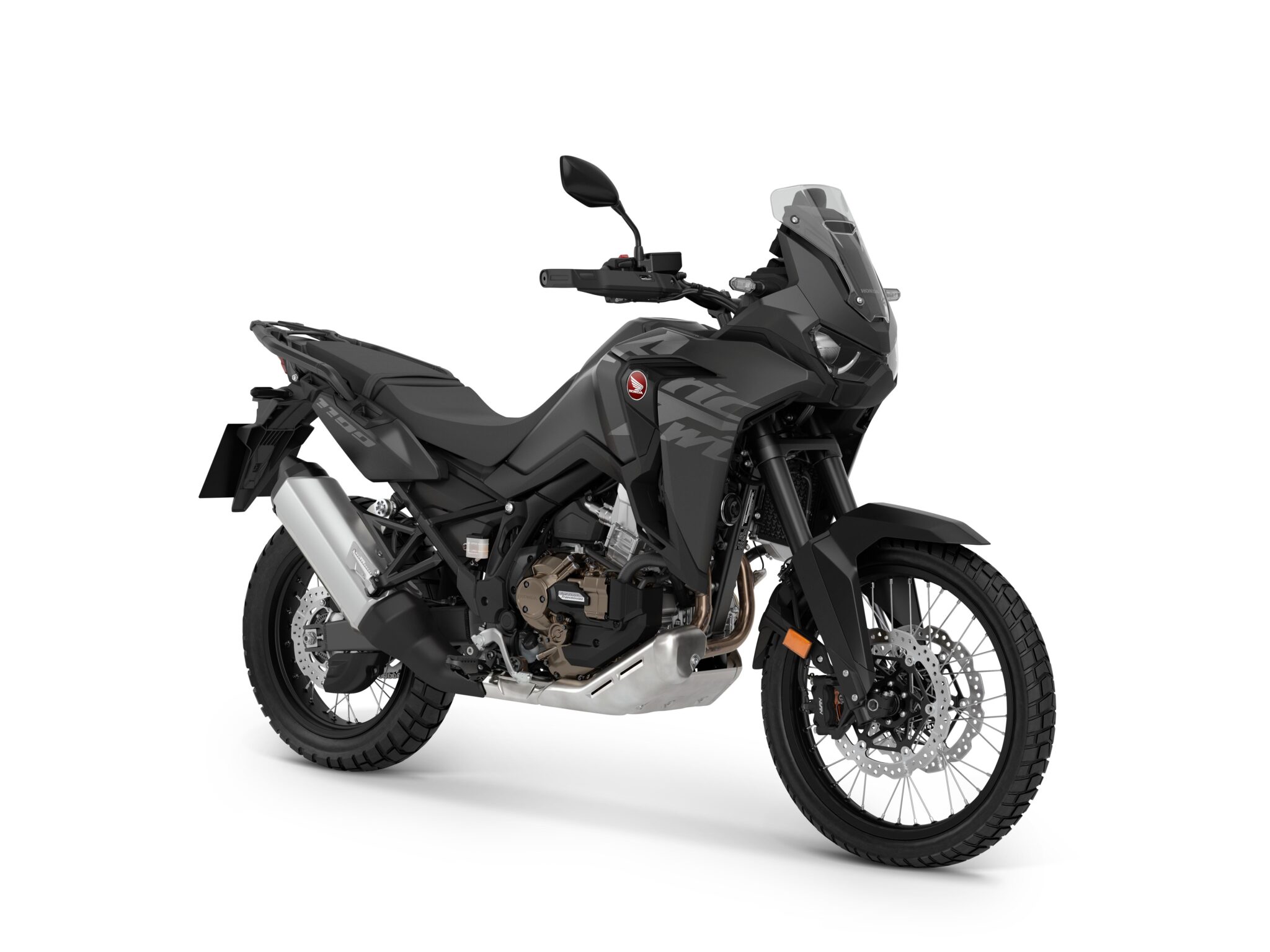

- **NEW** Mat Ballistic Black Metallic – now with all-black frame

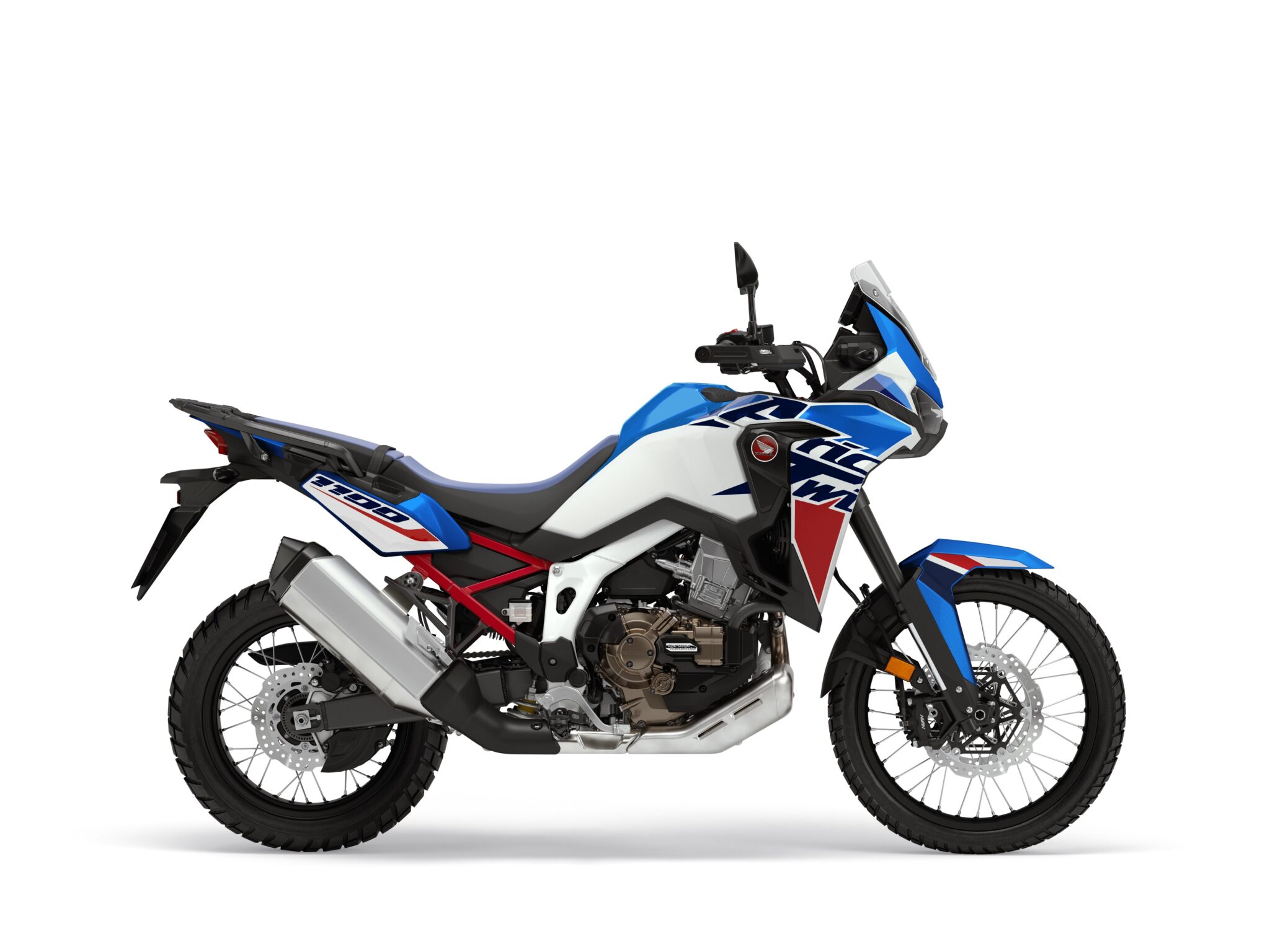

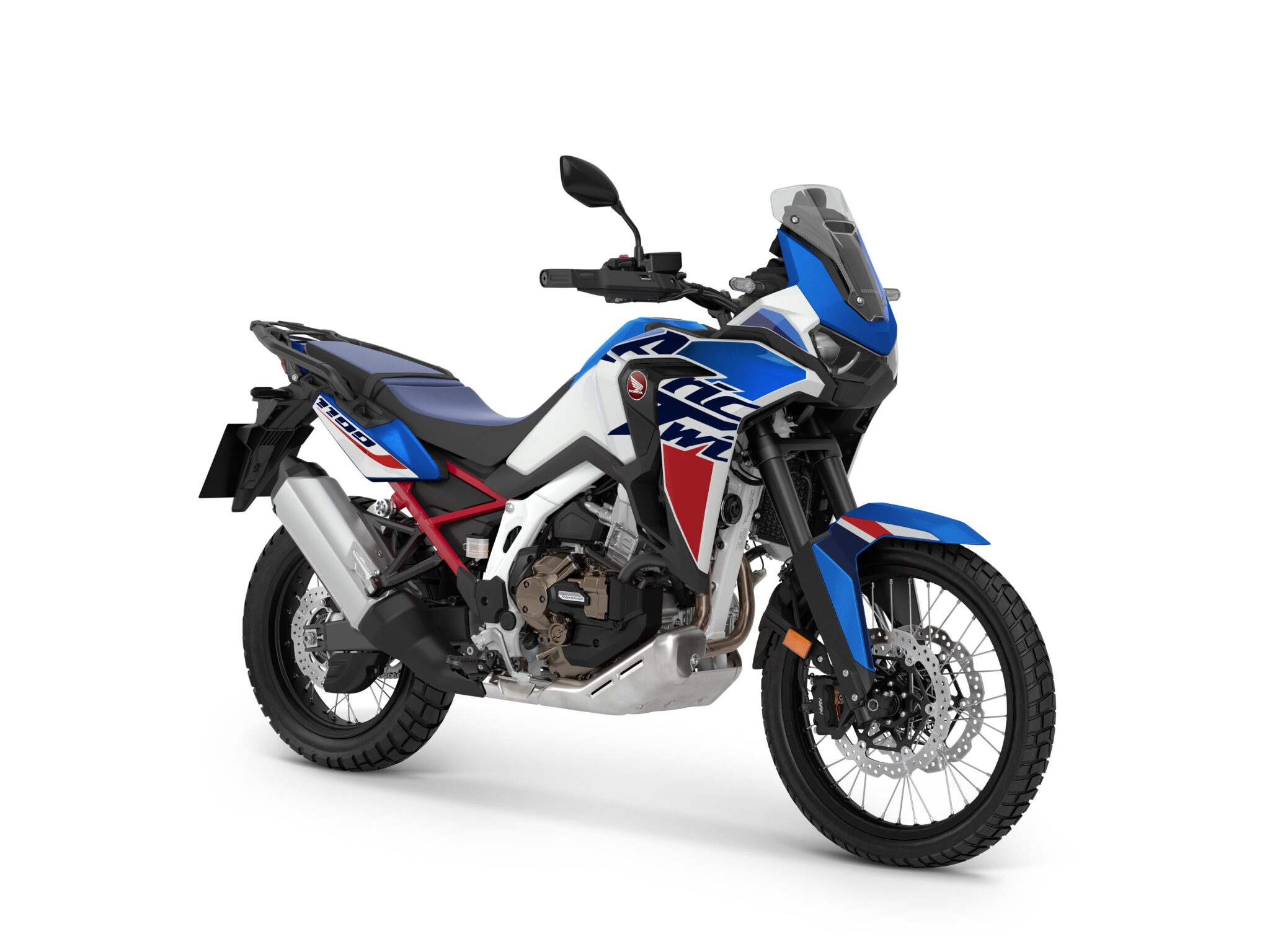

- **NEW** Glint Wave Blue Metallic Tricolour – with blue front ‘face’, and blue front fender and tail section with red and white detailing
Styling & Equipment
- Compact body style designed for off-road, with slim seat and high handlebars
- Multi Information Display (MID) 6.5-inch TFT touch screen
- Apple CarPlay® and Android Auto® allow use of a smartphone through the MID
- Bluetooth connectivity, Daytime Running Lights (DRL) and cruise control
Engine
- 1,084cc twin-cylinder engine gives 75kW peak power with 105Nm torque
- Unicam 8-valve head and semi-dry sump
- Variable Exhaust Control Valve (ECV) offers an engaging low-rpm sound and high-rpm performance
Engine & Chassis Management Electronics
- IMU-managed HSTC intervention levels have focus on off-road use
- Wheelie Control features 3 levels and IMU management
- Four riding modes: TOUR, URBAN, GRAVEL and OFF-ROAD
- Two USER modes allow for complete riding modes customisation
Dual Clutch Transmission
- ‘Easy and direct’ system offers super-fast gear changes in either Manual Transmission (MT) or Automatic D and S modes
- S mode (with 3 levels) revs higher and downshifts sooner than D, for more aggressive riding
- G switch improves rear wheel traction when off-road
- Incline detection adapts shift pattern depending on gradient
- IMU allows corning detection function for improved shift timings
- Designed for smooth handling at pull-away and in lower gears
Chassis
- Lightweight frame, with bolt-on aluminium subframe and light, rigid CRF450R-style swingarm for outstanding rear wheel traction and feel
- A six-axis Inertial Measurement Unit is housed in the centre of the machine
- Cornering ABS provides sure-footed feel and features an off-road setting
- Optimised damping and spring rates for the front and rear Showa suspension
Accessories
A range of Honda Genuine Accessories is available for the Africa Twin, available individually as well as in selected packs for convenience to further enhance the Africa Twin riding experience.
Accessories are available in both an Off-Road Pack, The Electric Pack, Super Pack and a Travel Pack for convenience.
Additional accessories are also available and include:
- Low (825-845mm) or high (870-895mm) seat options
- Full sticker protection
- Slip-on SC-Project muffler
- 38L top box
- 3L tank bag
Technical Specification
|
ENGINE |
|
|
Type |
SOHC Liquid-cooled 4-stroke 8-valve Parallel Twin with 270° crank and Uni-cam |
|
Displacement |
1084cc |
|
Bore x Stroke |
92mm x 81.5mm |
|
Compression Ratio |
10.1:1 |
|
Max. Power Output |
75kW at 7,500rpm |
|
Max. Torque |
105Nm at 6,250rpm |
|
Noise Level |
L-urban73.5dB, L-wot79.2dB – MT; |
|
Oil Capacity |
4.8/4.3 (5.2/4.7 DCT) |
|
FUEL SYSTEM |
|
|
Carburation |
PGM-FI |
|
Fuel Tank Capacity |
18.8L |
|
CO2 Emissions |
112g/km MT 110g/km DCT |
|
Fuel Consumption |
4.9L/100km (20.4km/L) MT 4.8L/100km (20.8km/L) DCT |
|
ELECTRICAL SYSTEM |
|
|
Starter |
Electric |
|
Battery Capacity |
12V-6Ah Li-ion BATTERY (20Hr) |
|
ACG Output |
0.49 kW / 5000rpm |
|
DRIVETRAIN |
|
|
Clutch Type |
Wet, multiplate with coil springs, aluminium cam assist and slipper clutch DCT – 2 wet multiplate clutches with coil springs |
|
Transmission Type |
6 Speed Manual (6 Speed DCT) |
|
FRAME |
|
|
Type |
Semi Double Cradle |
|
CHASSIS |
|
|
Dimensions (L´W´H) |
2,330mm x 960mm x 1,395mm |
|
Wheelbase |
1,575mm |
|
Caster Angle |
27.5° |
|
Trail |
113mm |
|
Seat Height |
850/870mm (low seat option 825mm, high seat option 895mm) |
|
Ground Clearance |
250mm |
|
Kerb Weight |
229kg (DCT 240kg) |
|
SUSPENSION |
|
|
Type Front |
Showa 45mm cartridge-type inverted telescopic fork with dial-style preload adjuster and DF adjustments, 230mm stroke. |
|
Type Rear |
Monoblock aluminium swing arm with Pro-Link with SHOWA gas-charged damper, hydraulic dial-style preload adjuster and rebound damping adjustments, 220 mm rear wheel travel. |
|
WHEELS |
|
|
Type Front |
21M/C x 2.15 wire spoke with aluminium rim |
|
Type Rear |
18M/C x 4.00 wire spoke with aluminium rim |
|
Rim Size Front |
21″ |
|
Rim Size Rear |
18″ |
|
Tyres Front |
90/90-21M/C 54H (tube type) (Bridgestone BATTLAX ADVENTURECROSS TOURER/ AX41T Metzler KAROO STREET) |
|
Tyres Rear |
150/70R18M/C 70H (tube type) (Bridgestone BATTLAX ADVENTURECROSS TOURER/ AX41T Metzler KAROO STREET) |
|
BRAKES |
|
|
ABS System Type |
2 channel with IMU |
|
Type Front |
310mm dual wave floating hydraulic disc with aluminium hub and radial fit 4-piston calipers and sintered metal pads |
|
Type Rear |
256mm wave hydraulic disc with single piston caliper and sintered metal pads. |
|
INSTRUMENTS & ELECTRICS |
|
|
Instruments |
LCD meter, TFT 6.5inch touch panel multi information display |
|
Security System |
Immobiliser, security alarm (optional) |
|
Headlight |
LED |
|
Taillight |
LED |
|
Electrics |
Daytime running lights, Bluetooth audio and Apple Carplay®, Android Auto®, USB Socket, auto turn signal cancel, cruise control, emergency stop signal, IMU, HSTC, wheelie control |
** Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
