Model Overview
The CB650R received a significant refresh for 21YM. The major news was application of 41mm Showa Separate Function Big Piston (SSF-BP) USD forks – high quality suspension that really elevates the bike’s handling ability.
EURO5 compliance for the engine was achieved with no loss of top end power; other detail improvements included improved visibility for the LCD display and USB Type-C charging socket under the seat. The headlight reflectors, side panels and rear mudguard were all also updated.

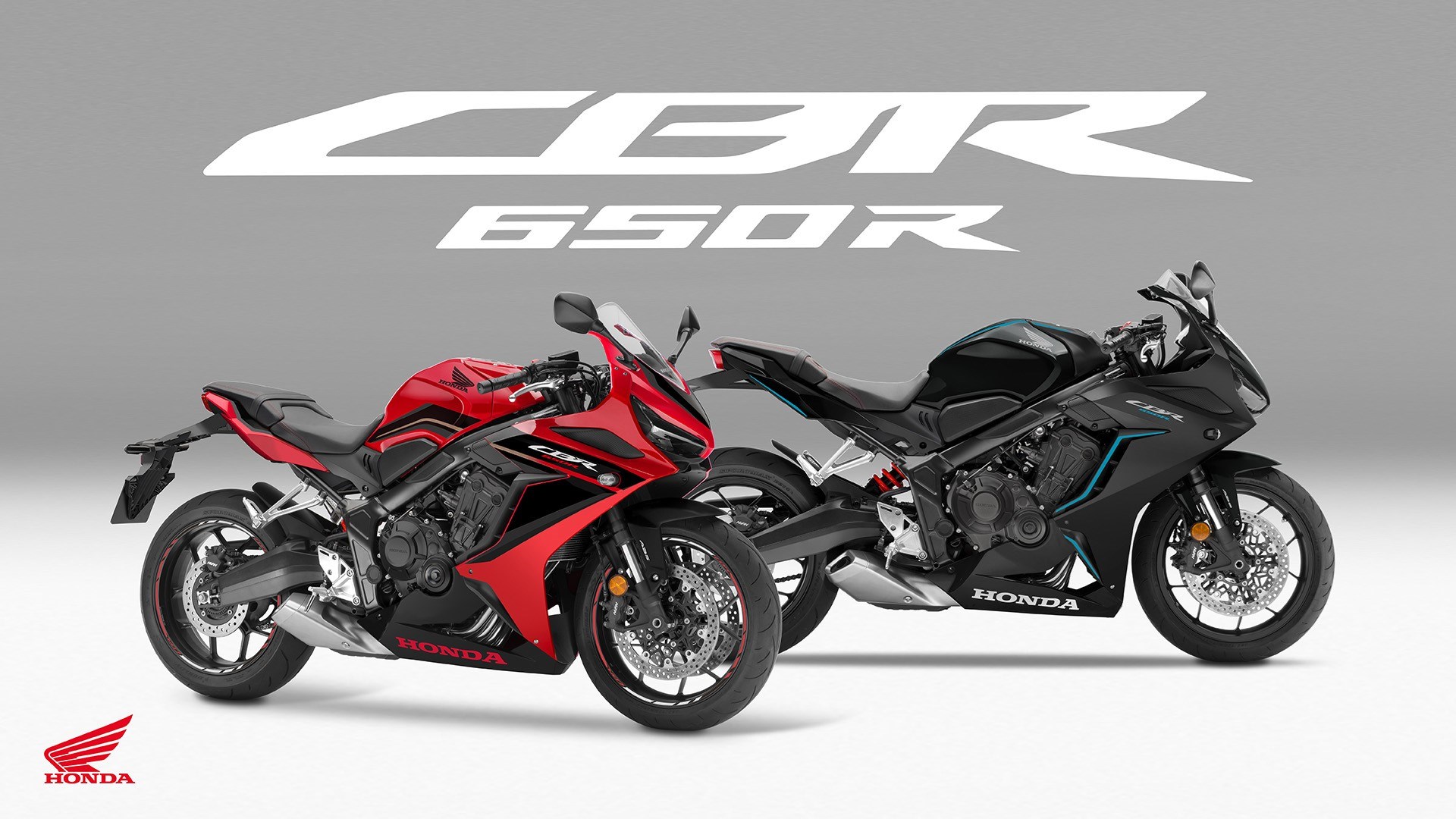

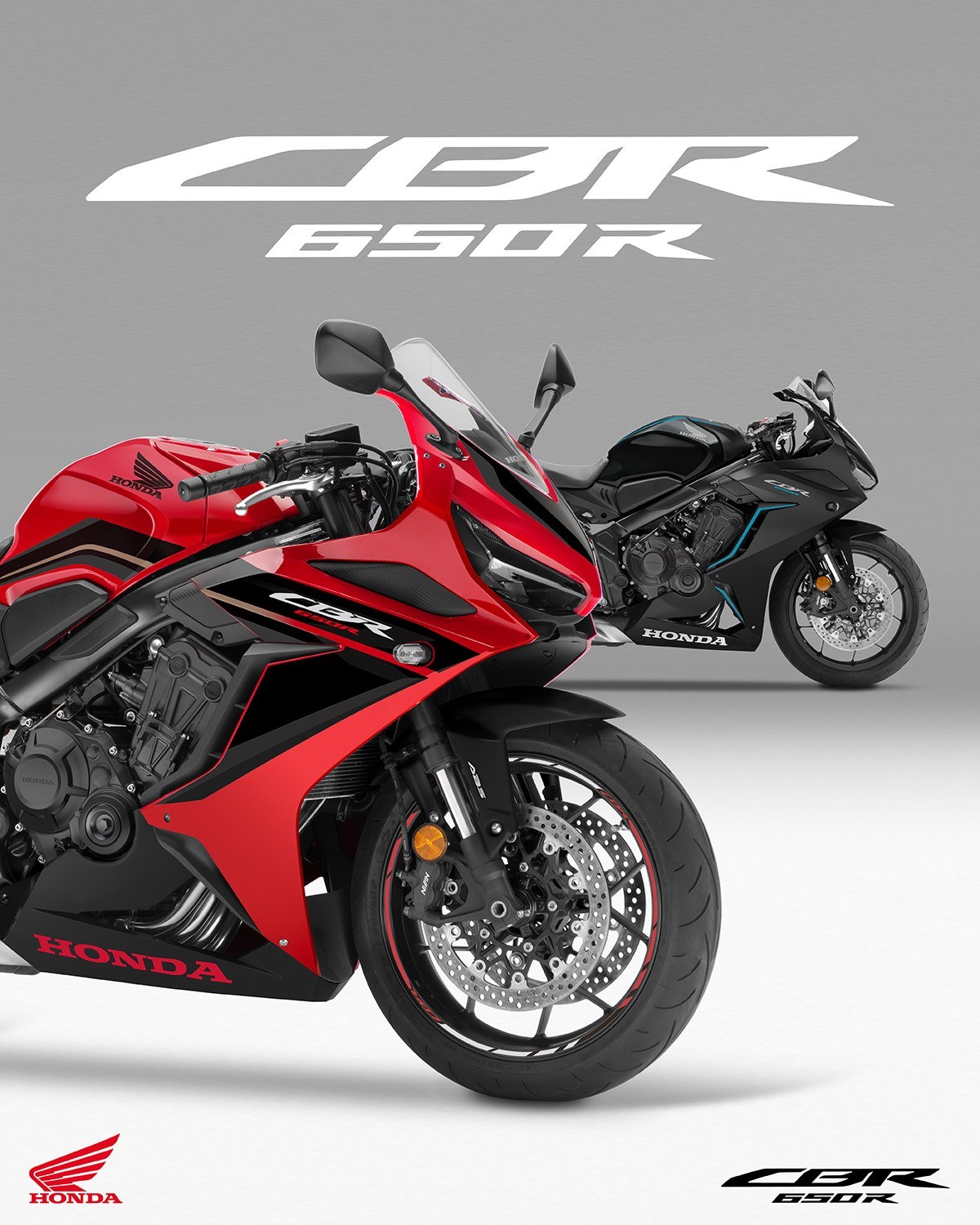

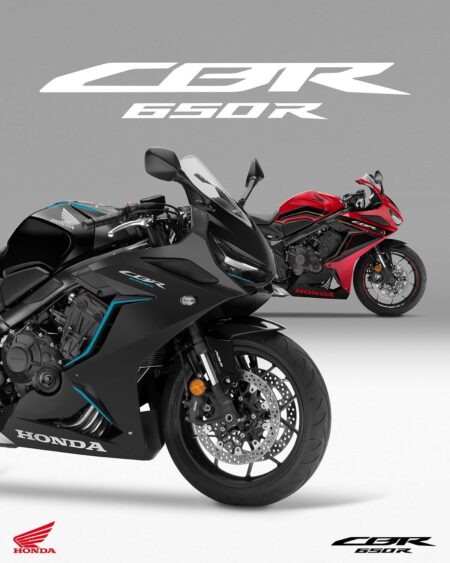

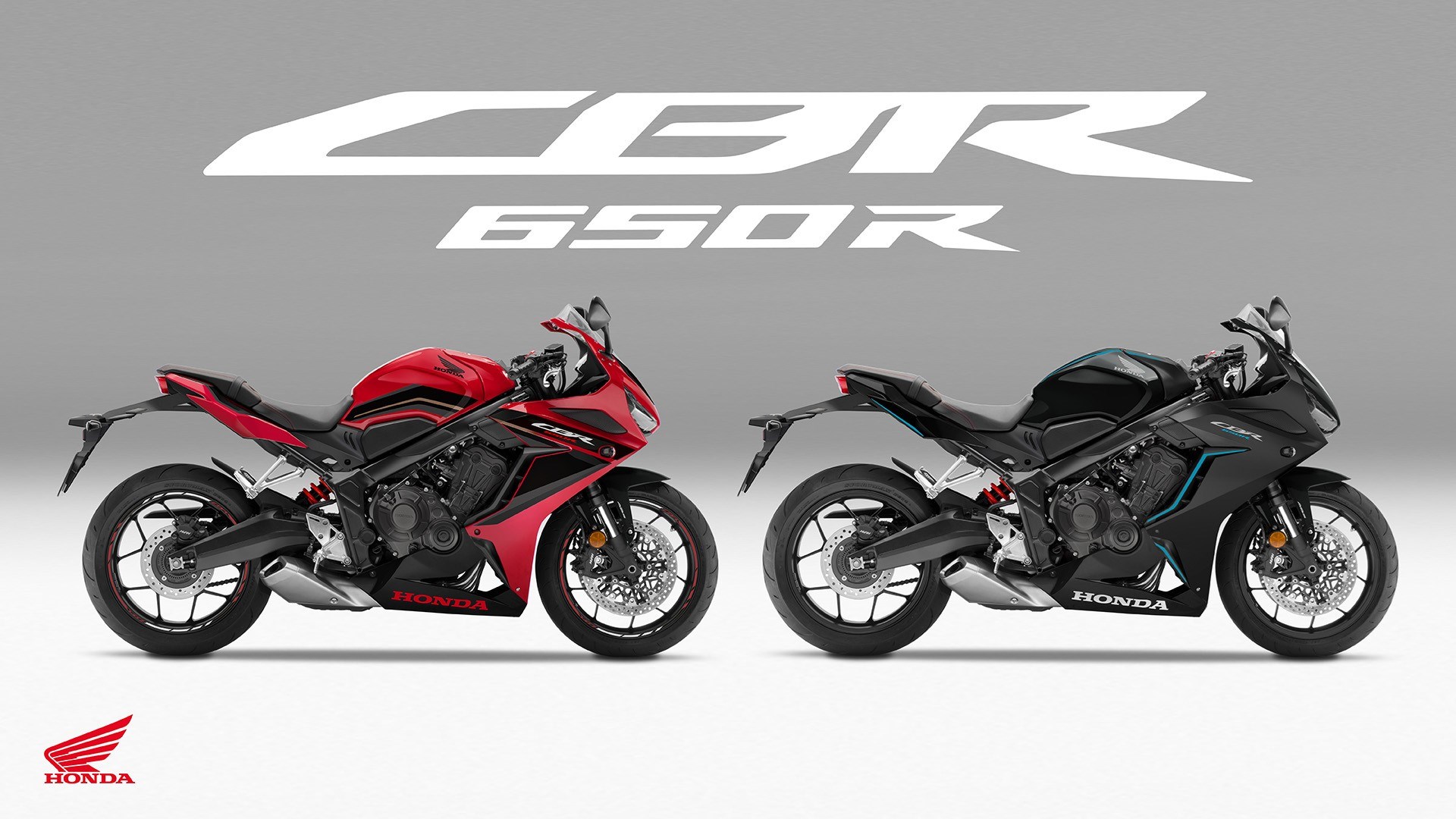

The 23YM CBR650R will be available in two colour options:

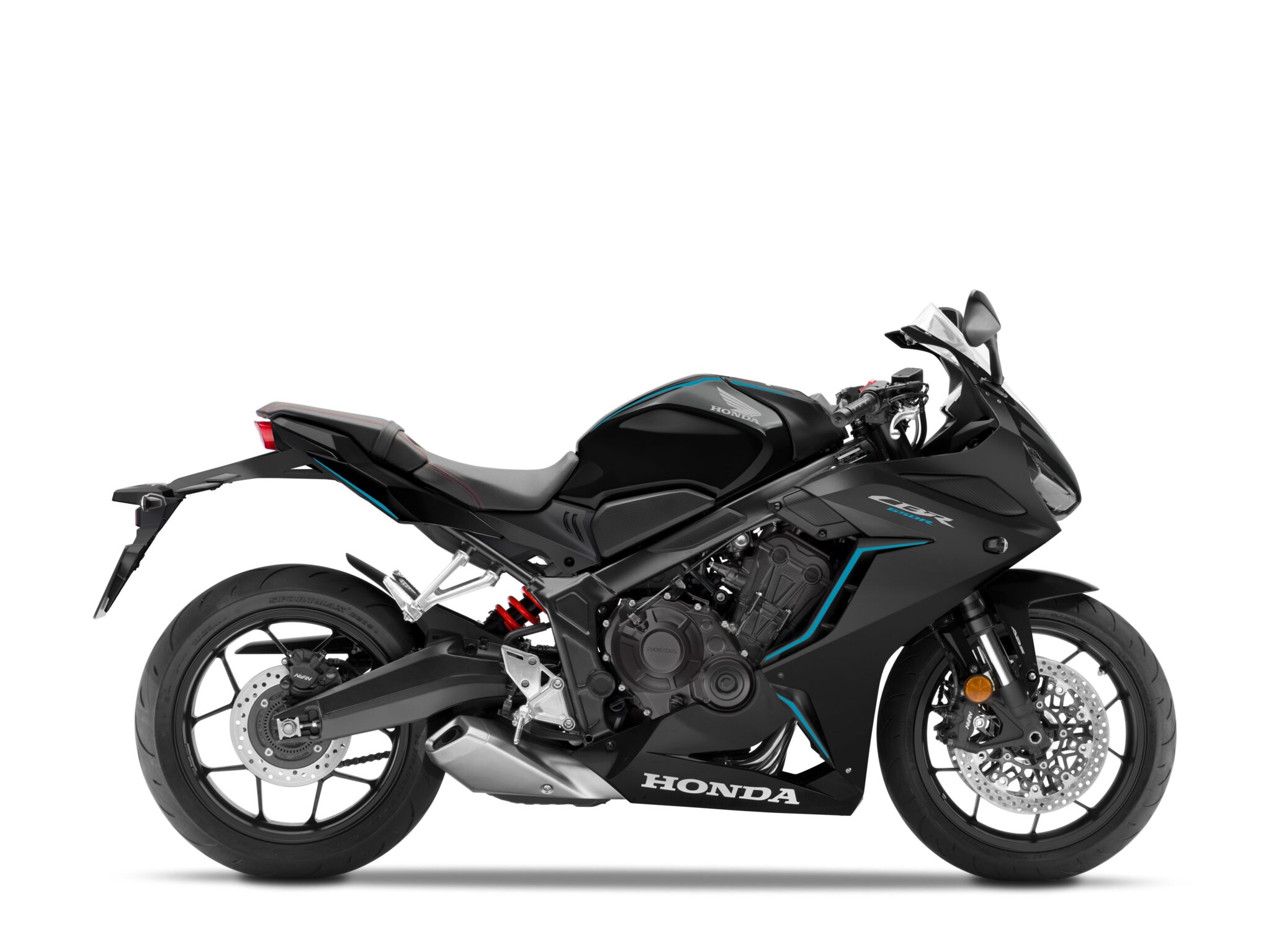

- Mat Gunpowder Black Metallic with new black engine and cam covers, blue highlights and red shock spring

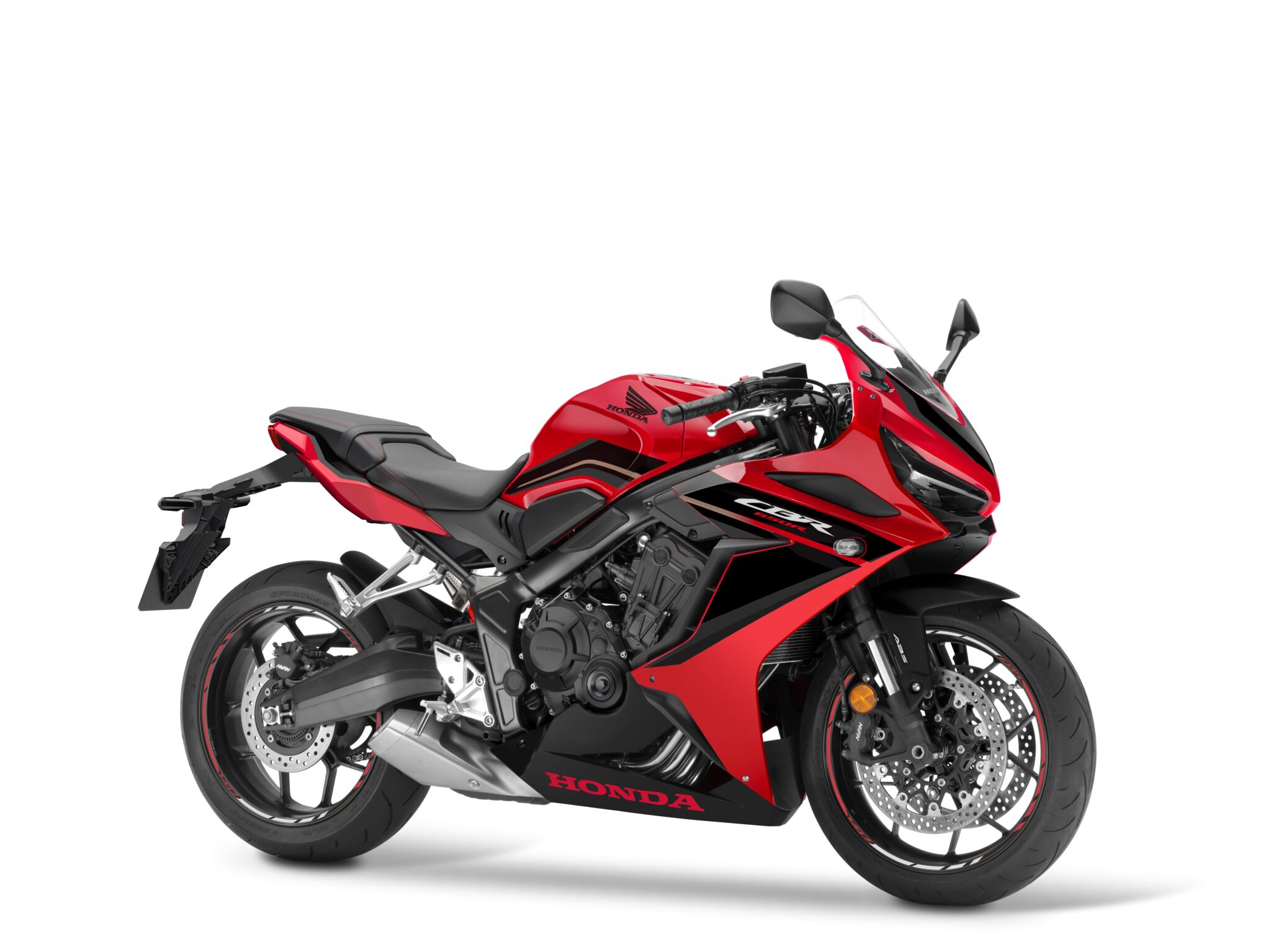

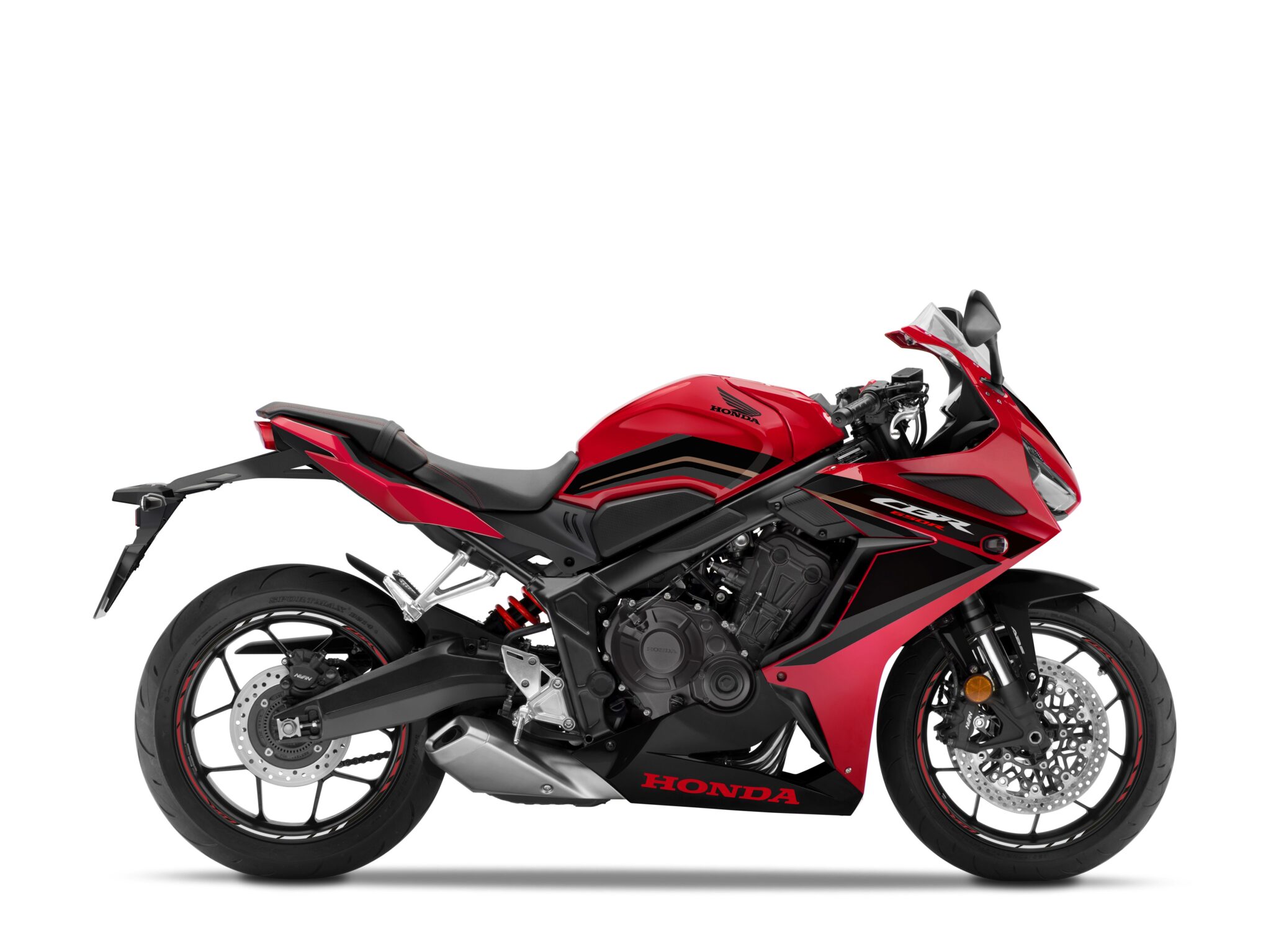

- Grand Prix Red with new black engine and cam covers, black belly pan and front mudguard and red Honda logo and shock spring
Engine
- 70kW peak power, 63Nm peak torque with 35kW A2 licence option
- Honda Selectable Torque Control (HSTC)
- Assist/slipper clutch
Chassis
- 41mm Showa Separate Function Big Piston (SFF-BP) USD forks
- Four-piston, radial-mount front brake calipers and floating discs
- 120/70-ZR17 and 180/55-ZR17 front and rear tyres
Styling & Equipment
- Minimal panels and rear mudguard/number plate mount
- LCD display easy to read
- USB Type-C socket under the seat
- New visual updates or both colours including new all black engine cases and cam cover
Accessories
A range of Genuine Honda Accessories are available for the CBR650R, both available as individual items and grouped in packs, that are ready to bolt straight on to the bike:
The Sport Pack enhances the dynamism and sportiness of the motorcycle by featuring the following accessories:
- Quickshifter
- Colour matched Rear Seat Cowl
- Smoke High Wind Screen
- Tank Pad
The Comfort Pack has been designed to increase rider comfort and features:
- Clear High Wind Screen
- Grip Heaters & Attachment
The Travel Pack includes all the parts necessary to maximize the carrying capacity of the CBR650R and features
- Tank Bag & Attachment
- Rear Seat Bag & Attachment
The line-up is completed with Wheel Stripes available in different colours. All the accessories featured in packs can also be purchased individually.
Technical Specification
|
ENGINE |
|
|
Type |
Liquid-cooled 4-stroke 16-valve DOHC inline-4 cylinder |
|
Engine Displacement (cm³) |
649cc |
|
Bore x Stroke (mm) |
67.0mm x 46.0mm |
|
Compression Ratio |
11.6:1 |
|
Max. Power Output |
70kW/12,000rpm |
|
Max. Torque |
63Nm/9,500rpm |
|
Oil Capacity |
2.7L |
|
Noise Level (dB) |
Lwot – 80 Lurban – 76 |
|
FUEL SYSTEM |
|
|
Carburation |
PGM-FI electronic fuel injection |
|
Fuel Tank Capacity |
15.4L |
|
Fuel Consumption |
20.4km/litre |
|
ELECTRICAL SYSTEM |
|
|
Starter |
Electric |
|
Battery Capacity |
12V/8.6AH |
|
ACG Output |
370W |
|
DRIVETRAIN |
|
|
Clutch Type |
Wet, multiplate disc |
|
Transmission Type |
6-speed |
|
Final Drive |
Chain |
|
FRAME |
|
|
Type |
Steel diamond |
|
CHASSIS |
|
|
Dimensions (LxWxH) |
2120 x 750 x 1,150mm |
|
Wheelbase |
1450mm |
|
Caster Angle |
25.5° |
|
Trail |
101mm |
|
Seat Height |
810mm |
|
Ground Clearance |
130mm |
|
Kerb Weight |
208kg |
|
Turning radius |
|
|
SUSPENSION |
|
|
Type Front |
41mm Showa Separate Function front Fork Big Piston (SFF-BP) USD forks |
|
Type Rear |
Monoshock damper with 10 stage adjustable preload, 43.5mm stroke |
|
WHEELS |
|
|
Rim Size Front |
Hollow section 6-spoke cast aluminium |
|
Rim Size Rear |
Hollow section 6-spoke cast aluminium |
|
Tyres Front |
120/70ZR17 M/C (58W) |
|
Tyres Rear |
180/55ZR17 M/C (73W) |
|
BRAKES |
|
|
ABS System Type |
2 channel; hydraulic dual disc 310mm front, hydraulic disc 240mm rear |
|
INSTRUMENTS & ELECTRICS |
|
|
Instruments |
Digital speedometer, digital bar graph tachometer, dual trip meter, digital bar graph fuel gauge, gear position and upshift indicator, digital clock |
|
Headlight |
LED |
|
Taillight |
LED |
# Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
