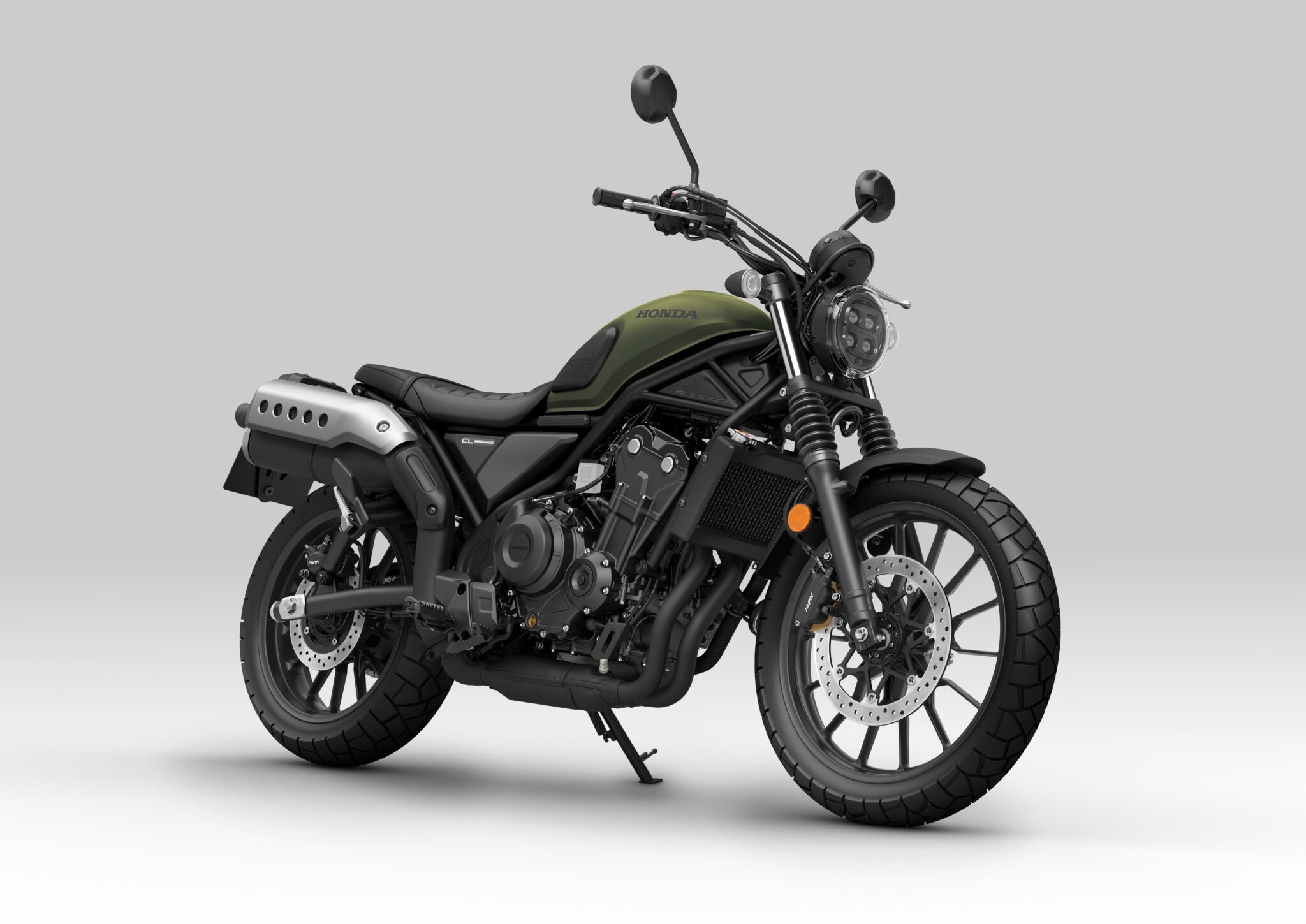

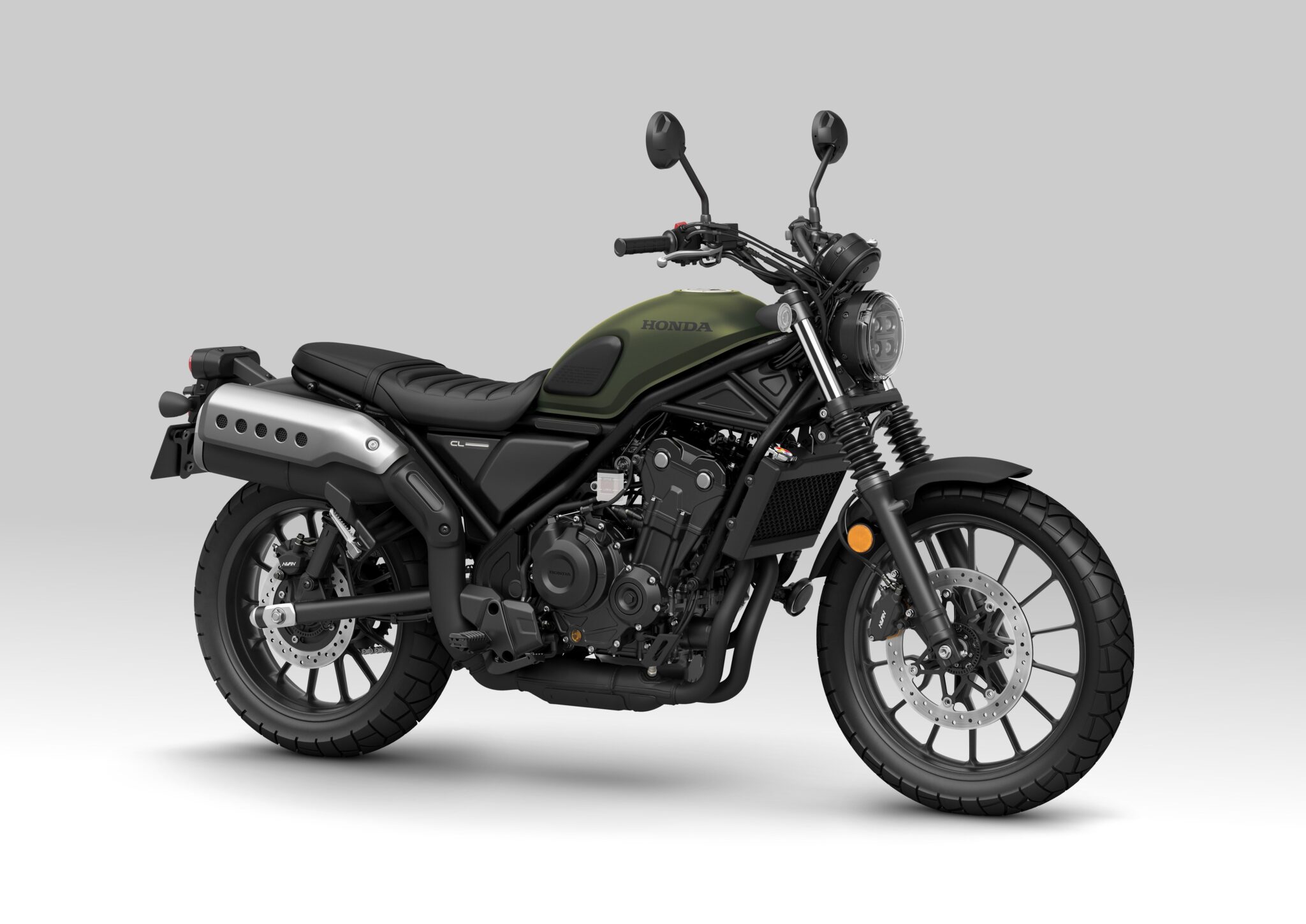

Model Overview
The development concept used from the start of the CL500 project has been ‘Express Yourself’. Deliberately targeting a young, style-conscious demographic, it’s a bike designed to fit neatly into an owner’s lifestyle with the ability to handle the daily commute, a long weekend ride, or even some light off-road – and to catch the eye while doing it.
Of course, and just as it should be for the younger rider, it’s also eminently customisable and there are a range of genuine Honda accessories ready to go that elevate personality, practicality and style.

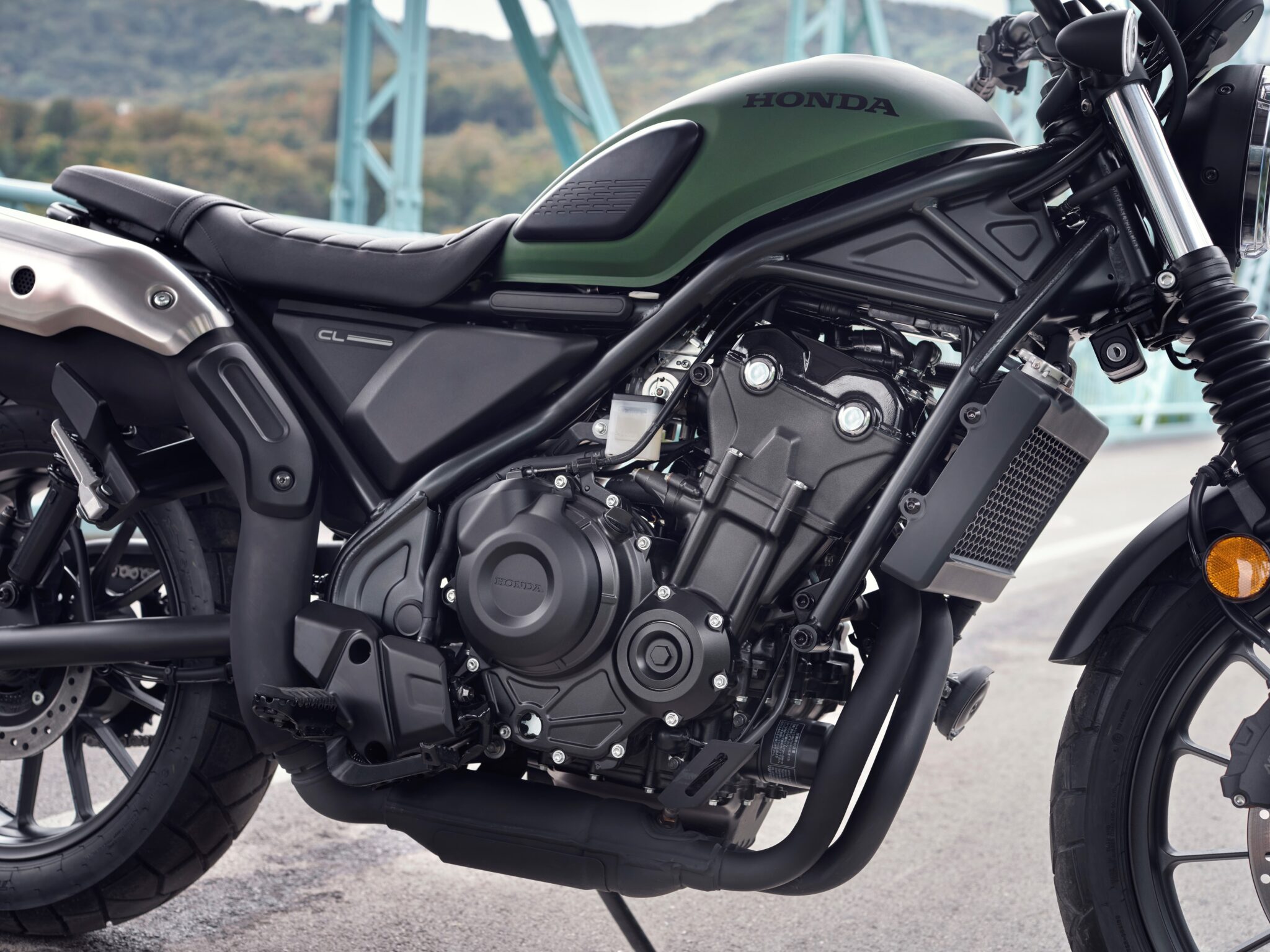

The 471cc parallel twin-cylinder engine is Honda’s lively and popular A2 licence compatible powerplant that produces 34.3kW of power and a healthy 43.4Nm of torque. It has unique ECU settings for CL duty, and short final drive gearing serves up smart around-town acceleration both from a standing start and through the gears. The six-speed gearbox is managed by assist/slipper clutch.
The tubular steel trellis-style main frame is both a style statement and foundation of easy handling. Long-travel suspension comprises 41mm telescopic forks and adjustable rear shock while the wheels – 19-inch front and 17-inch rear – wear block-pattern tyres. The brakes front and rear feature ABS modulation specifically balanced for excellent performance on a variety of surfaces, including light off-road.

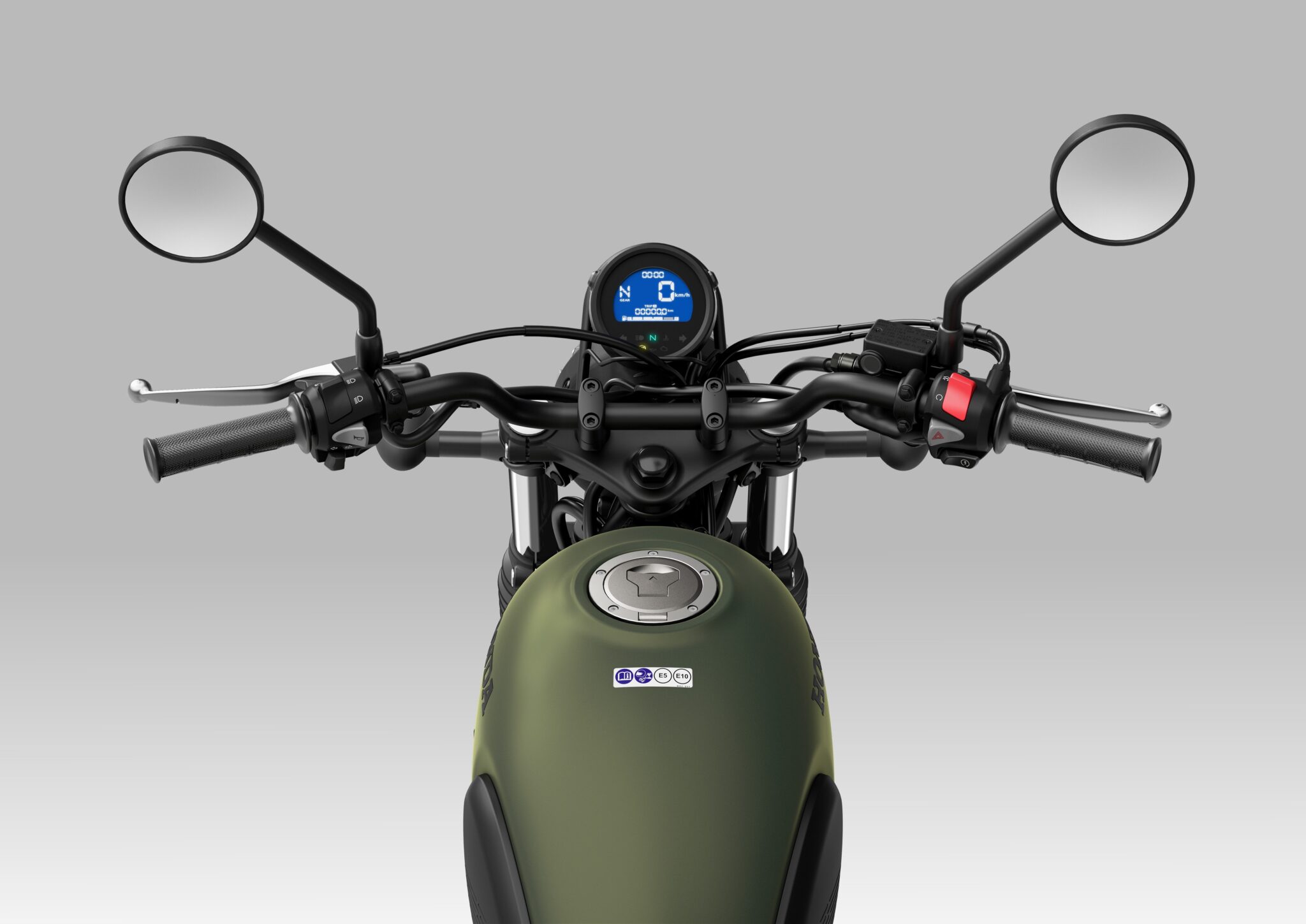

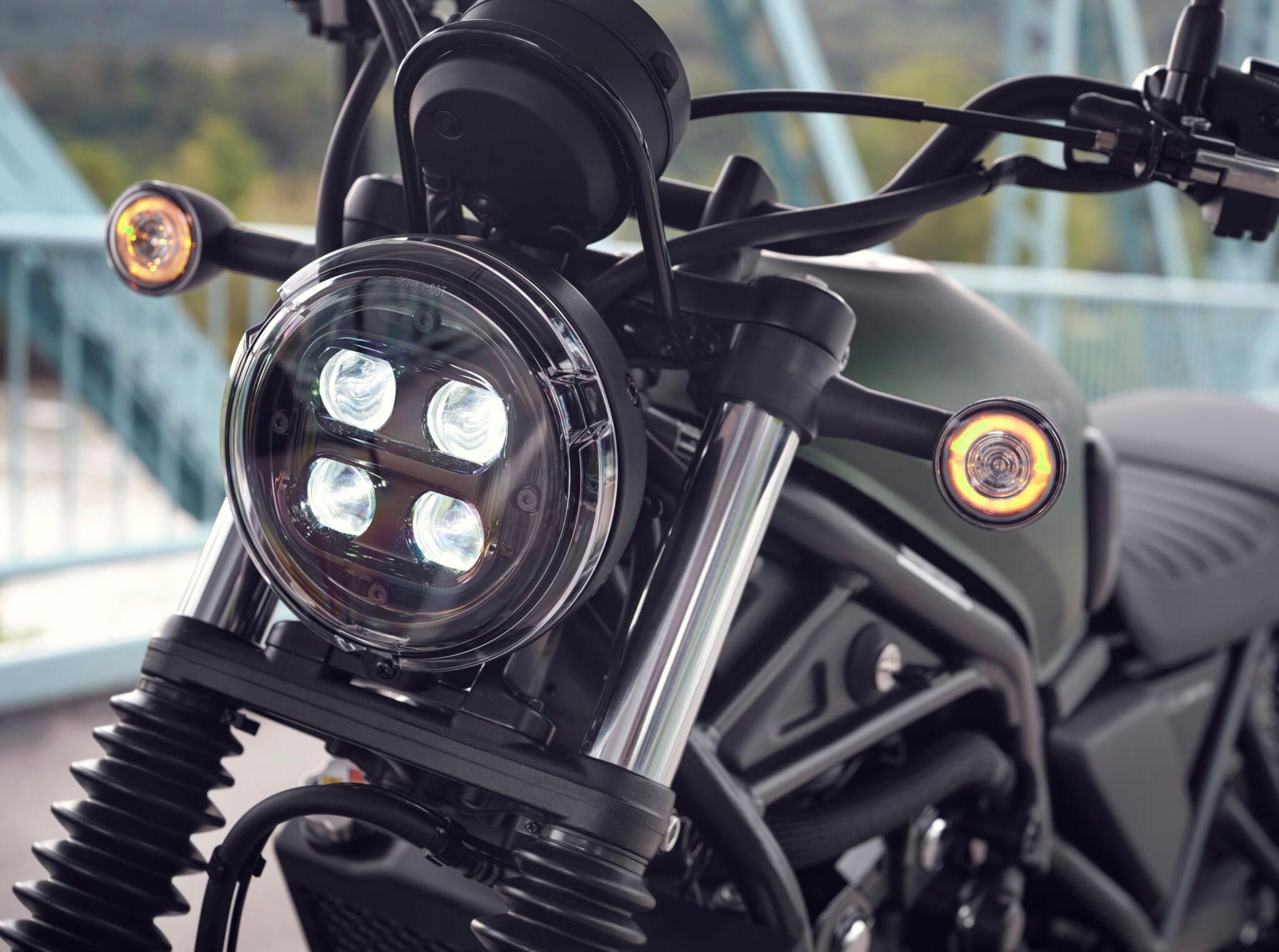

All lighting is LED, the instrument panel a compact negative LCD, and Emergency Stop Signal (ESS) technology operates the rear indicators as hazard lights under sudden, hard braking.
The 23YM CL500 will be available in the following colour options:

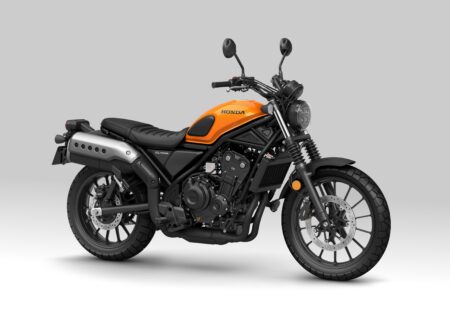

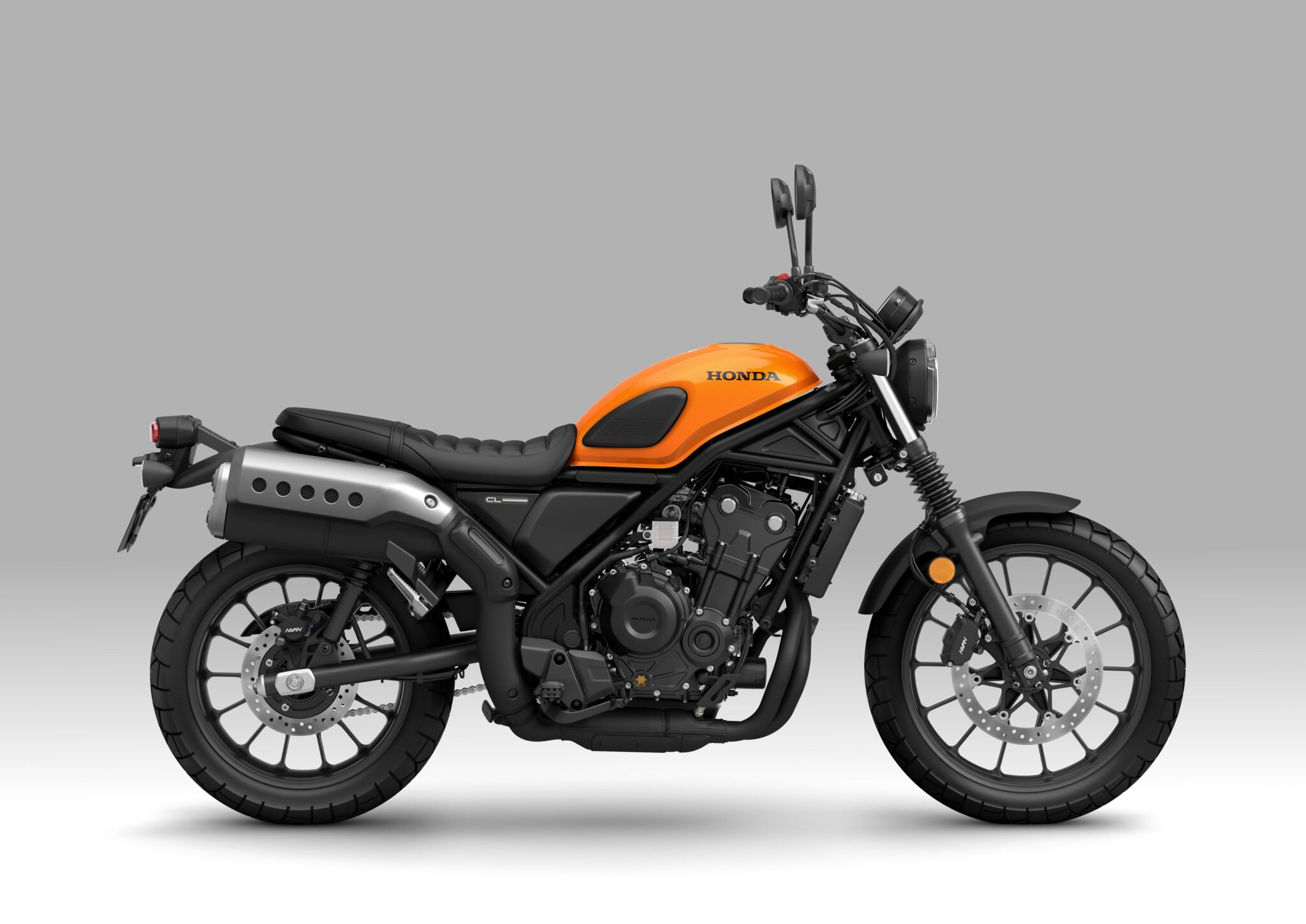

- Candy Energy Orange

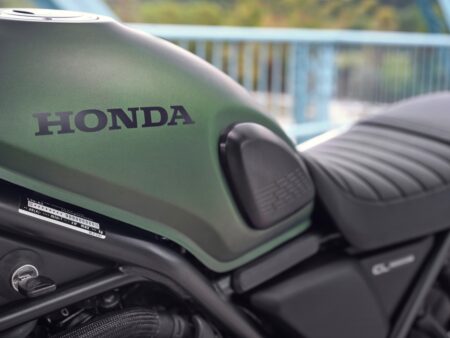

- Mat Laurel Green Metallic

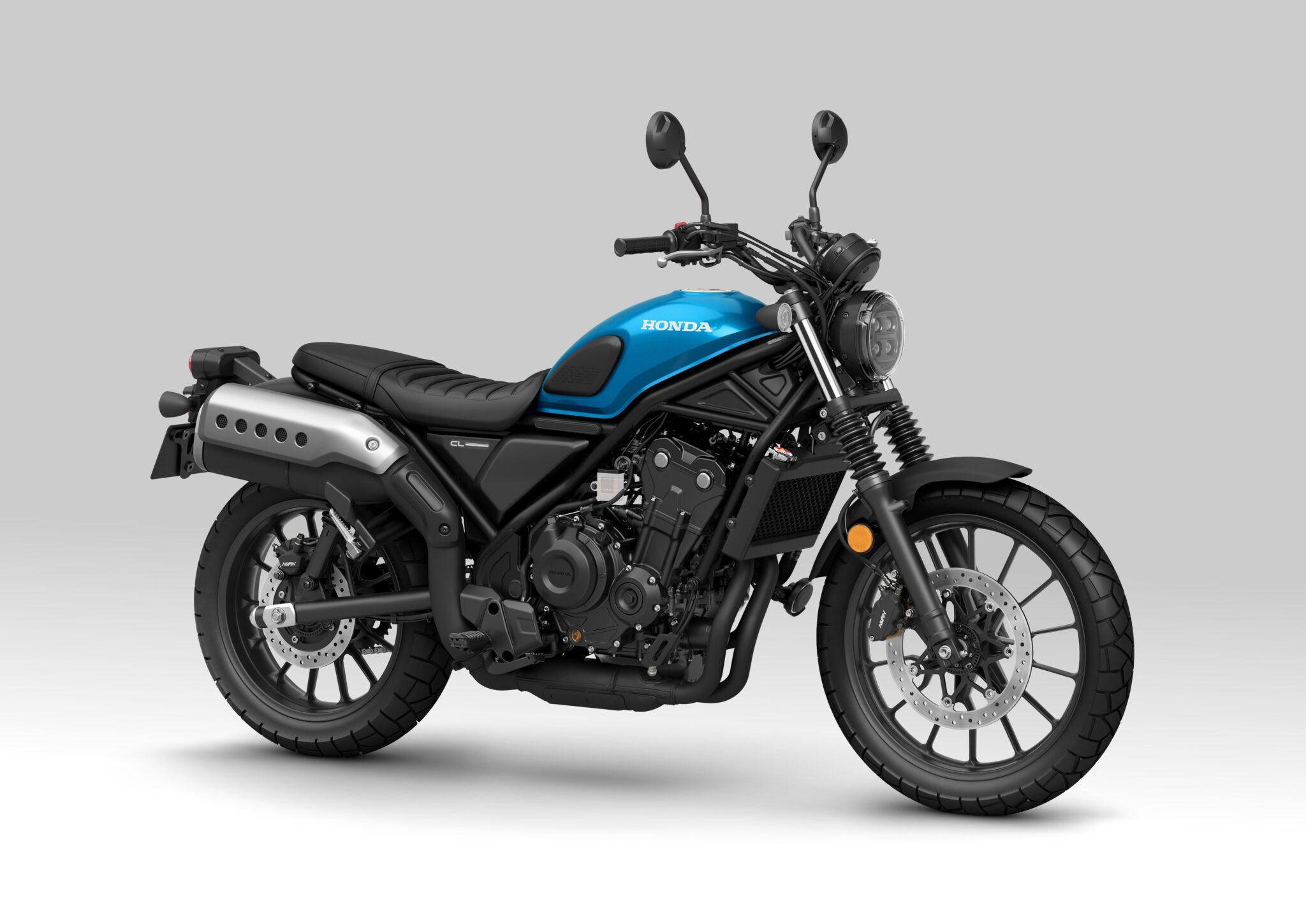

- Candy Caribbean Blue Sea

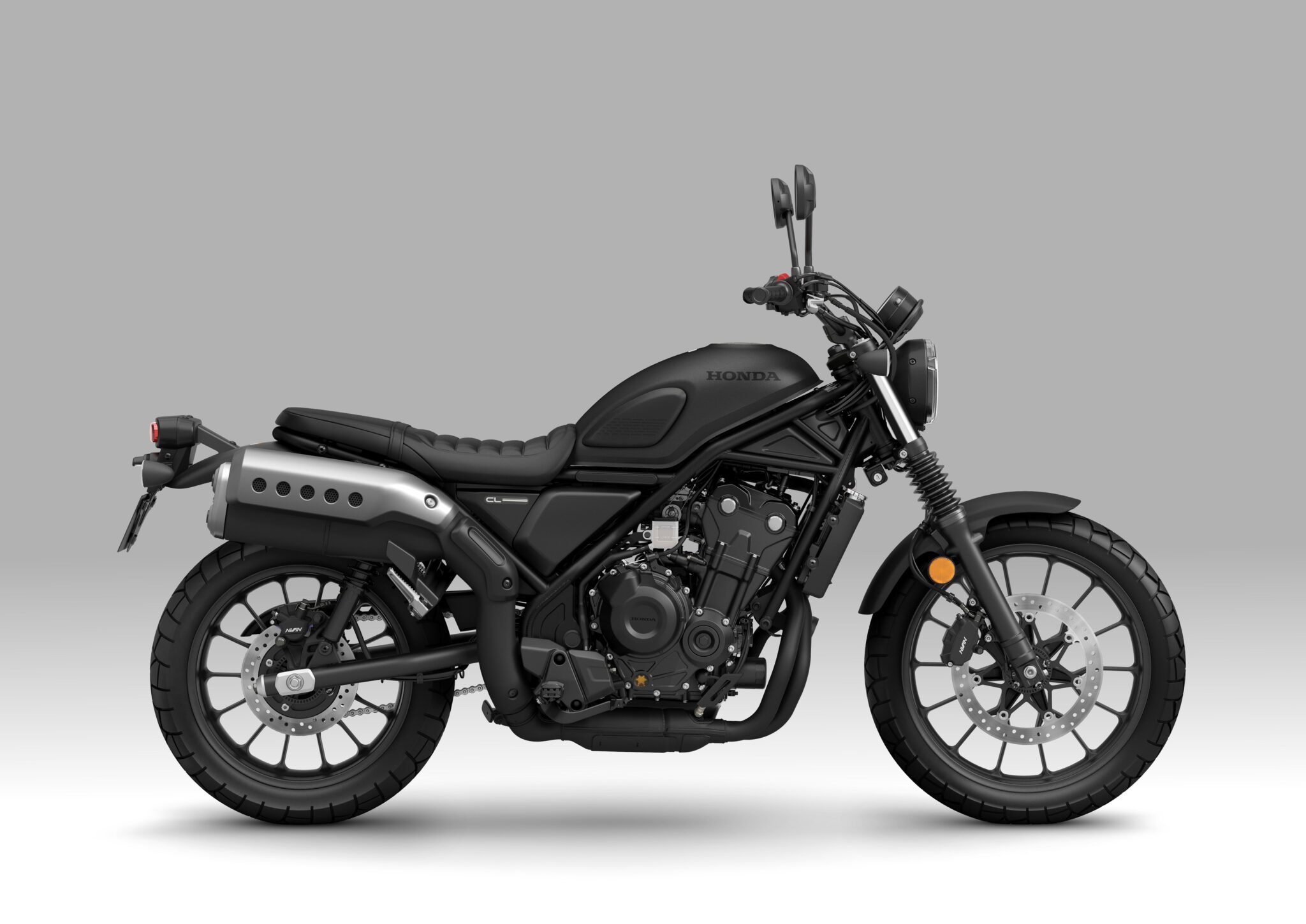

- Mat Gunpowder Black Metallic
Styling & Equipment
- Styling simple and raw, just like the original CL

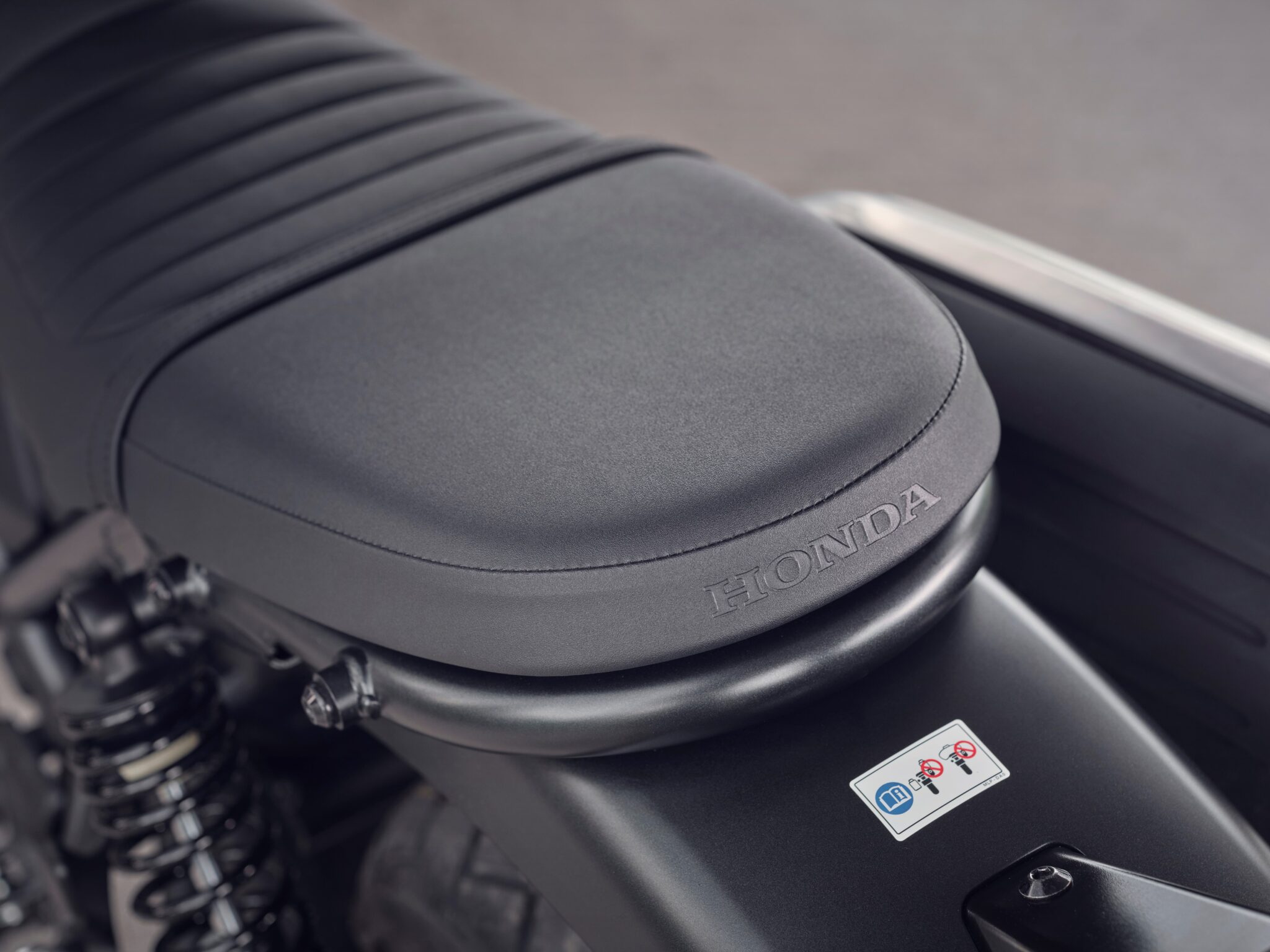

- 790mm seat height gives easy ground reach and legroom

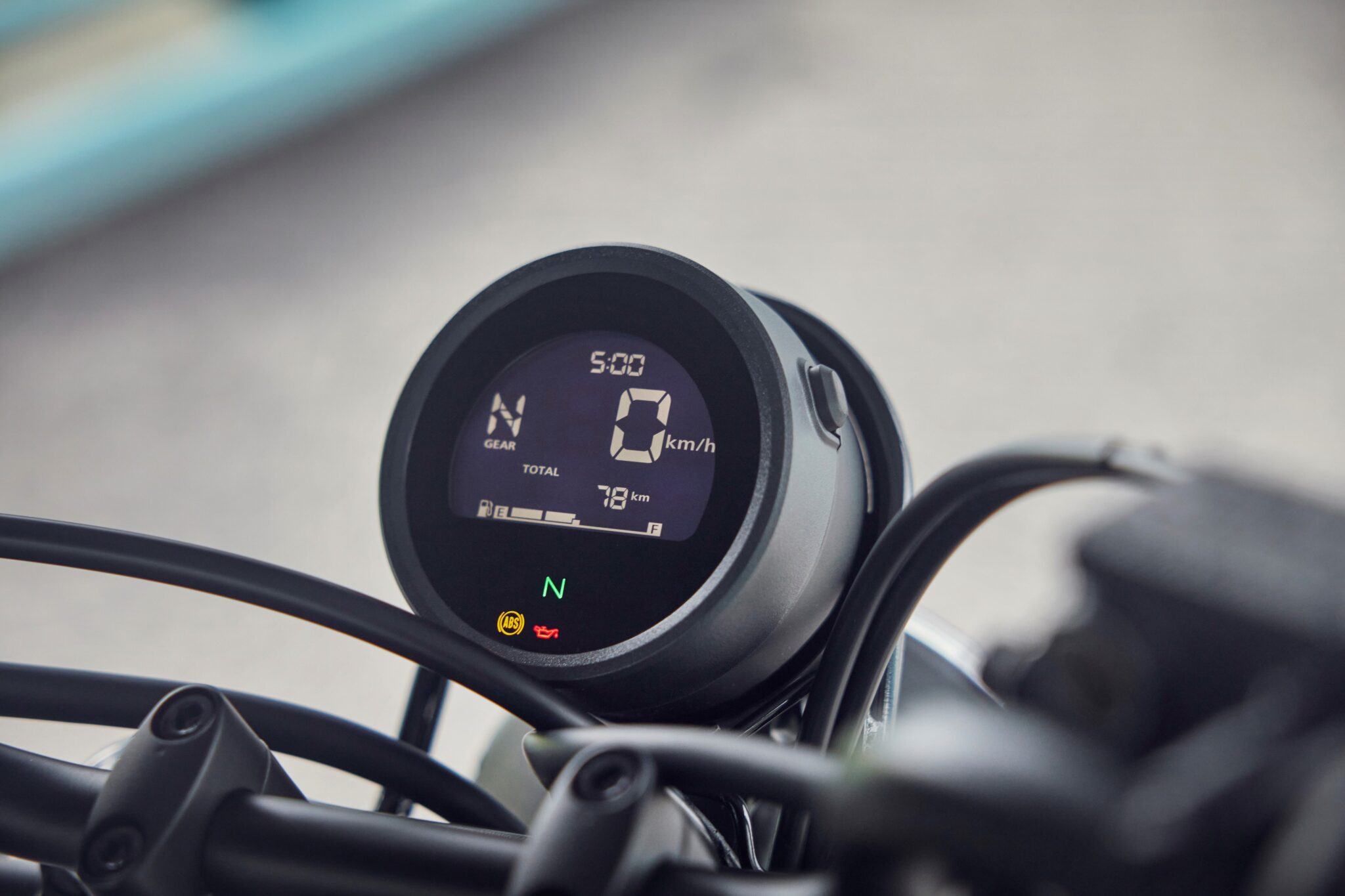

- Negative display LCD dash and underseat helmet holder

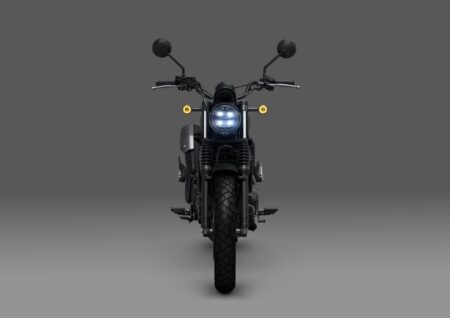

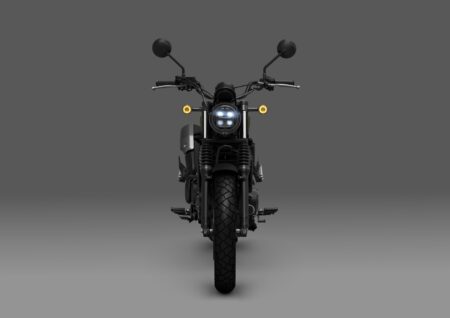

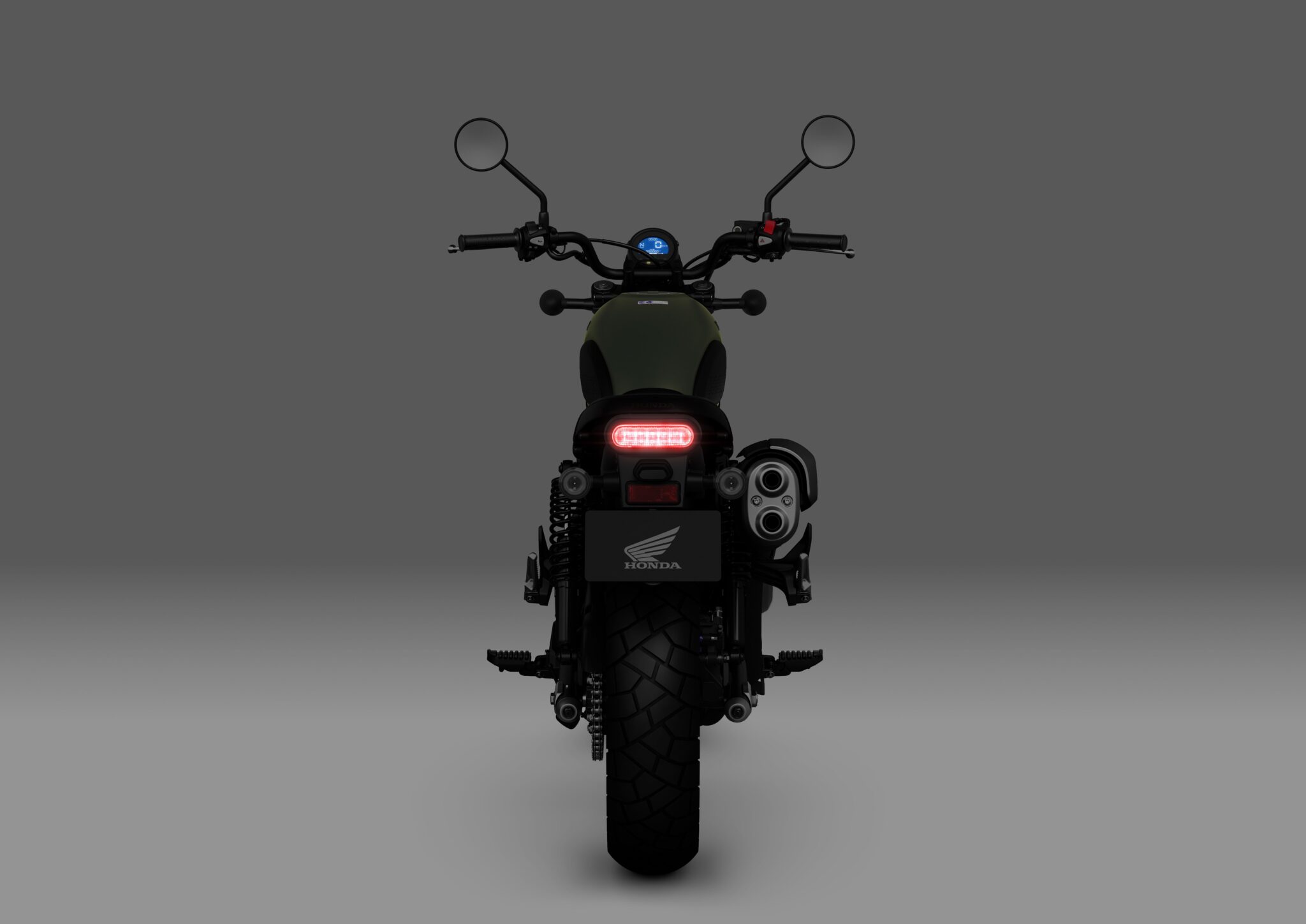

- Full LED lighting and Emergency Stop Signal (ESS) technology for the rear indicators
Engine
- 471cc liquid-cooled parallel twin-cylinder engine, A2 licence compatible
- Unique PGM-FI settings and shorter final drive gearing
- Assist/slipper clutch for rear wheel control

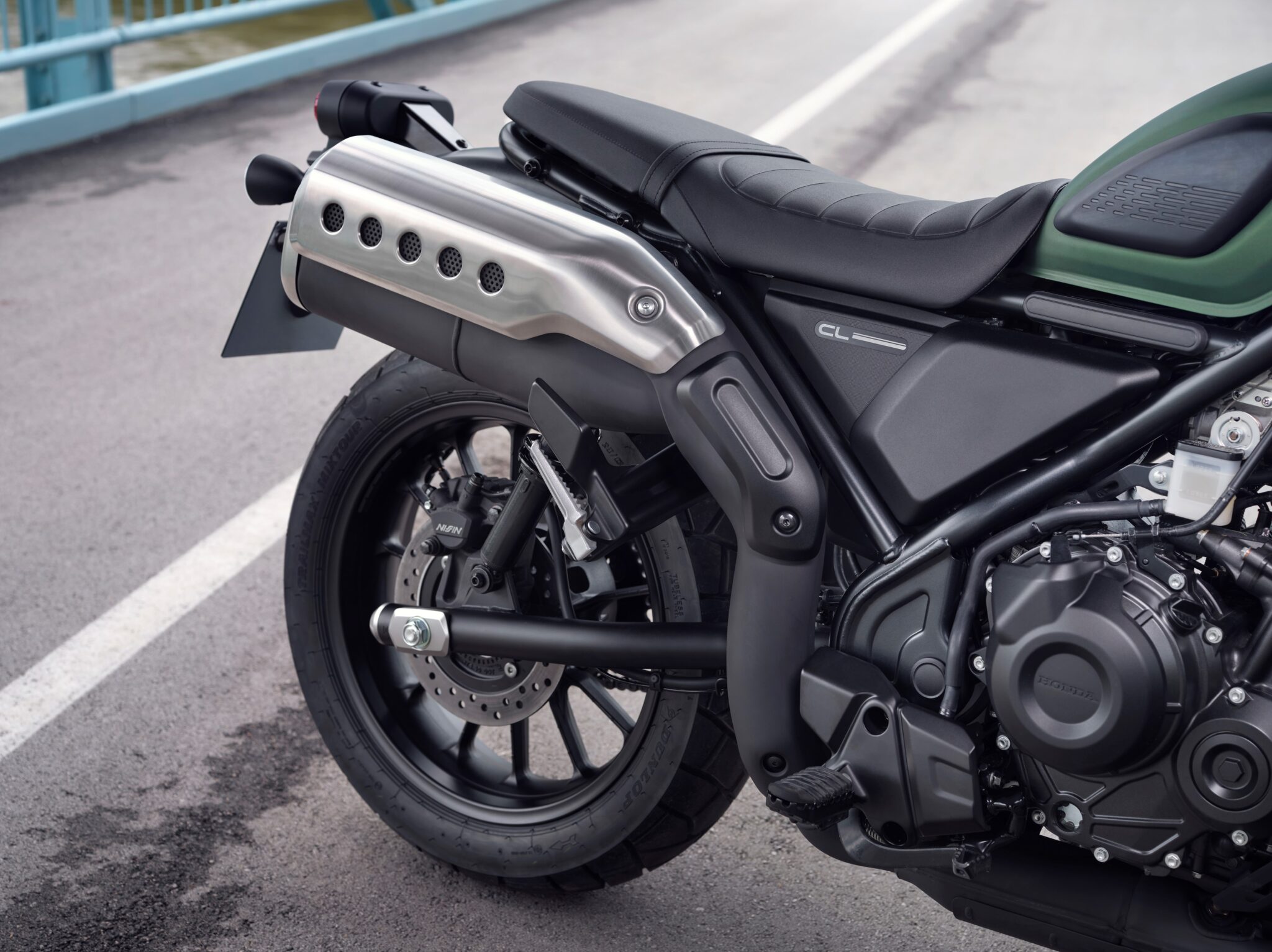

- Iconic ‘upswept’ twin-exit exhaust muffler
Chassis
- Tubular diamond-structure steel frame

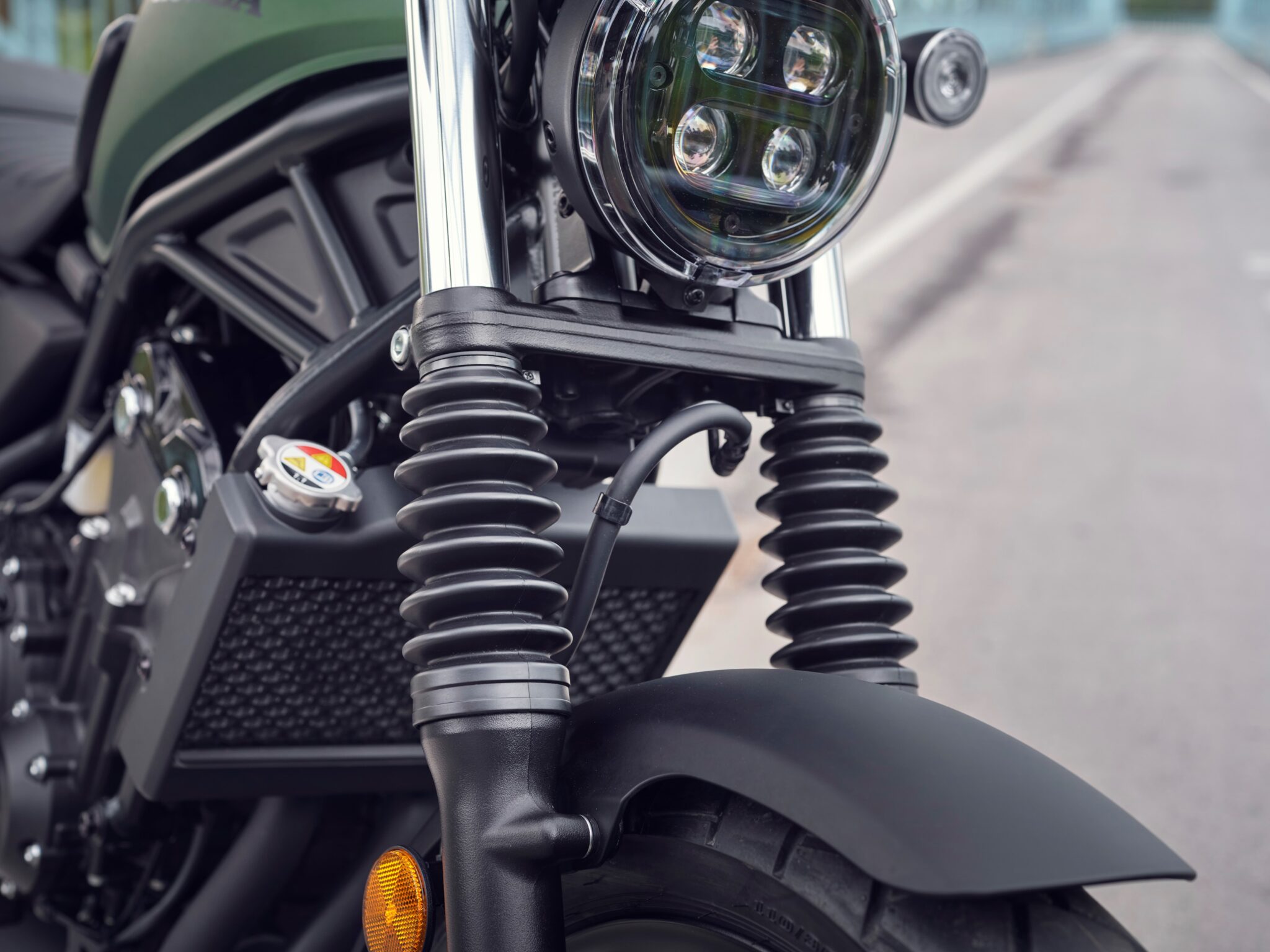

- 41mm telescopic forks and twin, spring preload adjustable rear shocks

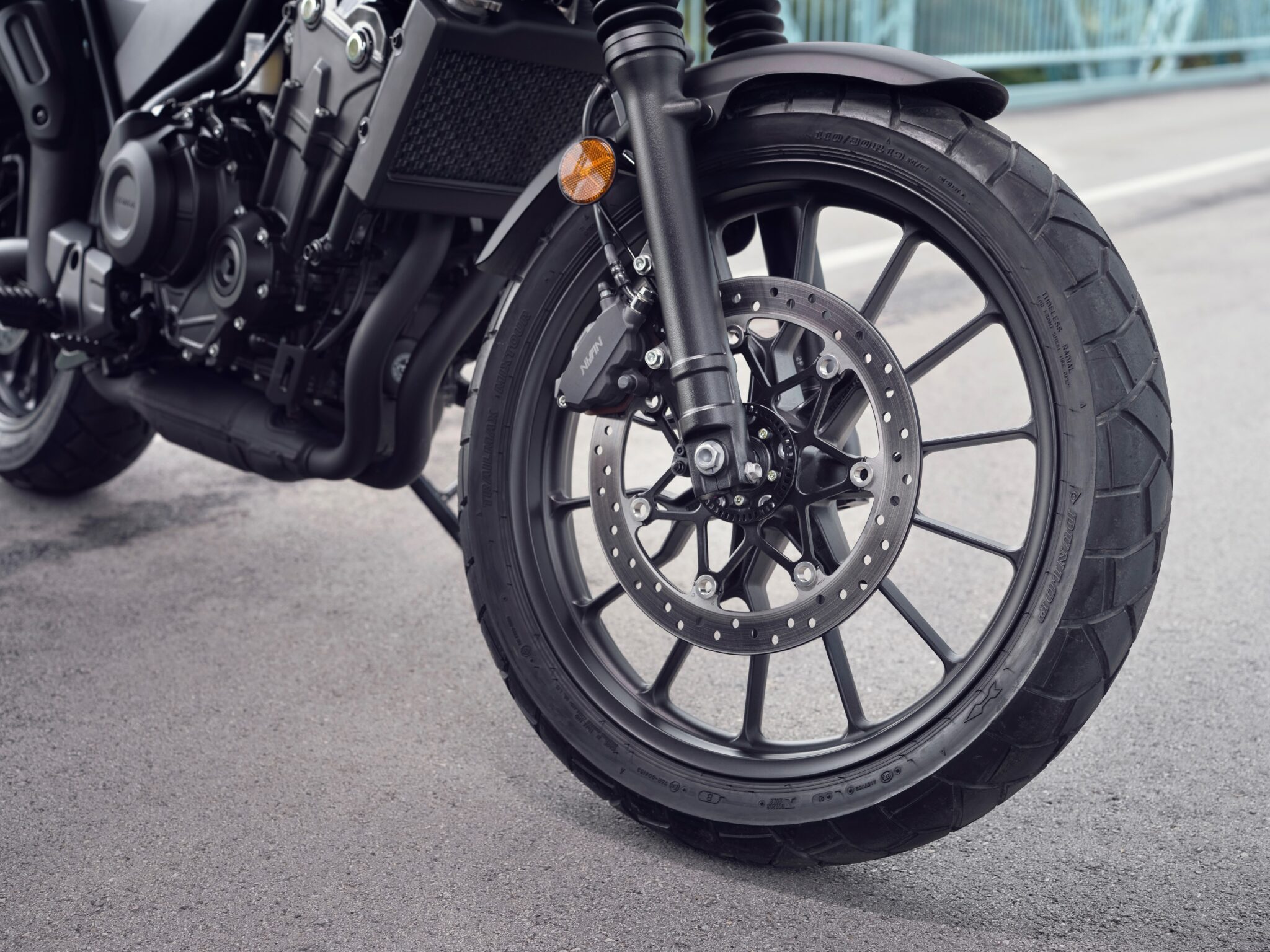

- Two-piston front brake caliper working a 310mm floating disc
- ABS balanced for light off-road
- 19-inch front/17-inch rear combination
Accessories
A full range of Genuine Honda accessories are available for the CL500, ready for personalisation to an owner’s preference.
The rear subframe is designed for easy fitment of cosmetic parts and the soft rear panniers; a rear rack also mounts the 38L top box. There’s also the option of a 30mm higher seat – finished in brown with black double stitching – for taller riders.
Cosmetic additions to add classic off-road style include lightweight polypropylene side number boards, fly screen, knuckle guards and high front mudguard. Practical items include heated grips, ACC charging socket and rear shock covers.
For convenience, three specially designed packs are ready to go:
ADVENTURE PACK
Knuckle guards, high front mudguard, rear shock cover, and rally footpegs.
TRAVEL PACK
Soft saddlebag, heated grips, ACC socket, adjustable brake lever and tank pad.
STYLE PACK
Head light cowl, cowl stripe, wheel stripes, rear side cover, rear side cover stripe and high seat.
Technical Specification
|
ENGINE |
|
|
Engine Type |
Liquid-cooled DOHC 4-stroke 4-valve two-cylinder |
|
Engine Displacement |
471cc |
|
Bore x Stroke (mm) |
67 x 66.8 |
|
Compression Ratio |
10.7:1 |
|
Max. Power Output |
34.3kW @ 8500rpm |
|
Max. Torque |
43.4Nm @ 6250rpm |
|
Noise Level (dB) |
Lwot- 76.1dB; Lurban – 72.9 dB |
|
Oil Capacity |
3.2L |
|
Starter |
Electric |
|
FUEL SYSTEM |
|
|
Carburation |
PGM-FI electronic fuel injection |
|
Fuel Tank Capacity |
12L |
|
CO2 Emissions WMTC |
84 g/km |
|
Fuel Consumption |
27.7 km/l |
|
ELECTRICAL SYSTEM |
|
|
Battery Capacity |
12V 7Ah |
|
DRIVETRAIN |
|
|
Clutch Type |
Wet multiplate, assisted slipper clutch |
|
Transmission Type |
6 speed manual transmission |
|
Final Drive |
Chain |
|
FRAME |
|
|
Frame Type |
Steel diamond |
|
CHASSIS |
|
|
Dimensions (L´W´H) |
2175mm x 830mm x 1135mm |
|
Wheelbase |
1485mm |
|
Caster Angle |
27° |
|
Trail |
108mm |
|
Seat Height |
790mm |
|
Ground Clearance |
155mm |
|
Kerb Weight |
192kg |
|
Turning radius |
2.6 m |
|
SUSPENSION |
|
|
Suspension Front |
Telescopic 41mm Upright forks, 150mm travel |
|
Suspension Rear |
Twin shock with 45mm round pipe swingarm, 5-step pre-load adjustment |
|
WHEELS |
|
|
Wheels Front |
Cast Aluminium |
|
Wheels Rear |
Cast Aluminium |
|
Tyres Front |
110/80R19M/C 59H |
|
Tyres Rear |
150/70R17M/C 69H |
|
BRAKES |
|
|
ABS Type |
2 channel |
|
Brakes Front |
Single 310mm floating disc, 2 piston calipers |
|
Brakes Rear |
Single 240mm disc, 1 piston calliper |
|
INSTRUMENTS & ELECTRICS |
|
|
Instruments |
LCD Meter with speedometer, dual trip meters, fuel level and consumption gauge, clock, gear position, upshift indicator |
|
Headlight |
LED |
|
Taillight |
LED |
|
12V Socket |
Optional |
|
Security System |
HISS |
|
Additional Features |
ESS |
|
|
|
Please note that all specifications are provisional and subject to change without notice. Fuel consumption figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
