23YM Honda Z125 Monkey

Description

Fill in the below for a call-back

Model Overview

Drawn from the MSX Grom the Monkey’s two-valve air-cooled engine produces 6.9kW power with 11Nm torque. It’s durable and easy to use while a 5-speed gearbox opens up longer rides. The steel frame, USD forks, twin rear shocks and 12-inch wheels roll smoothly; for extra safety the ABS braking is Inertial Measurement Unit (IMU) controlled.

Then, of course, there’s the inimitable Monkey look, correct from the mini-ape ’bars to upswept exhaust. 23YM sees the Monkey pay proper homage to the 1967 version, with its chequered seat pattern and classic Honda style of the time

For 23YM the Monkey is available in the following paint options:

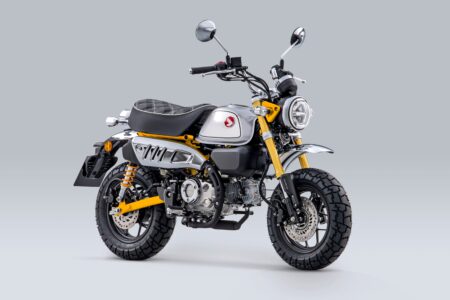

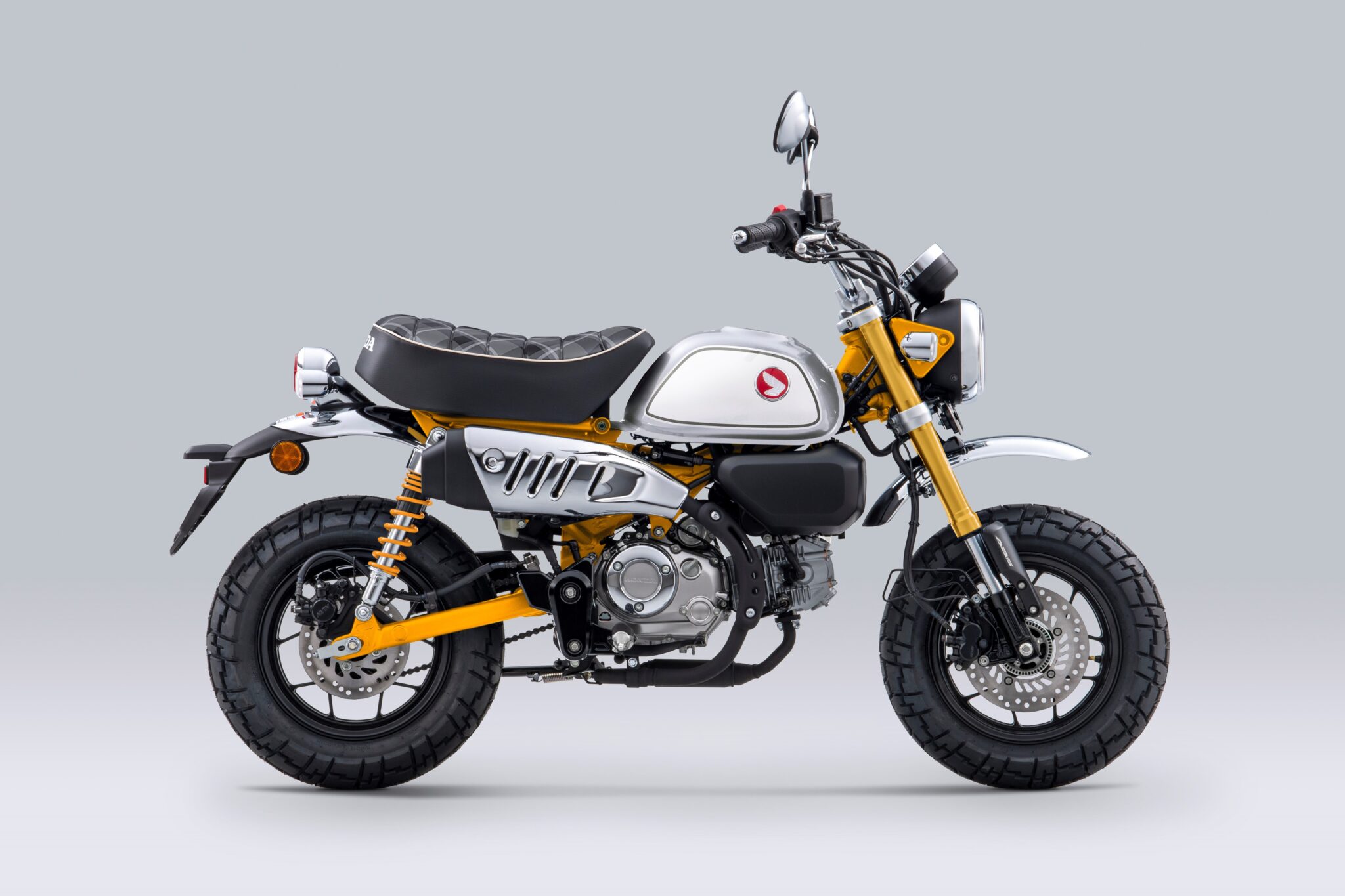

1. Banana Yellow with new yellow frame, swingarm, rear fork springs, black/white tartan seat and white tank infill

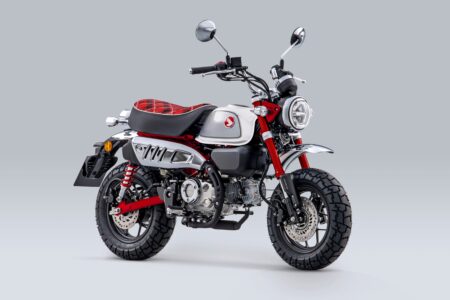

2. Pearl Nebula Red with new red frame, swingarm rear fork springs, black/white/red tartan seat and silver tank infill

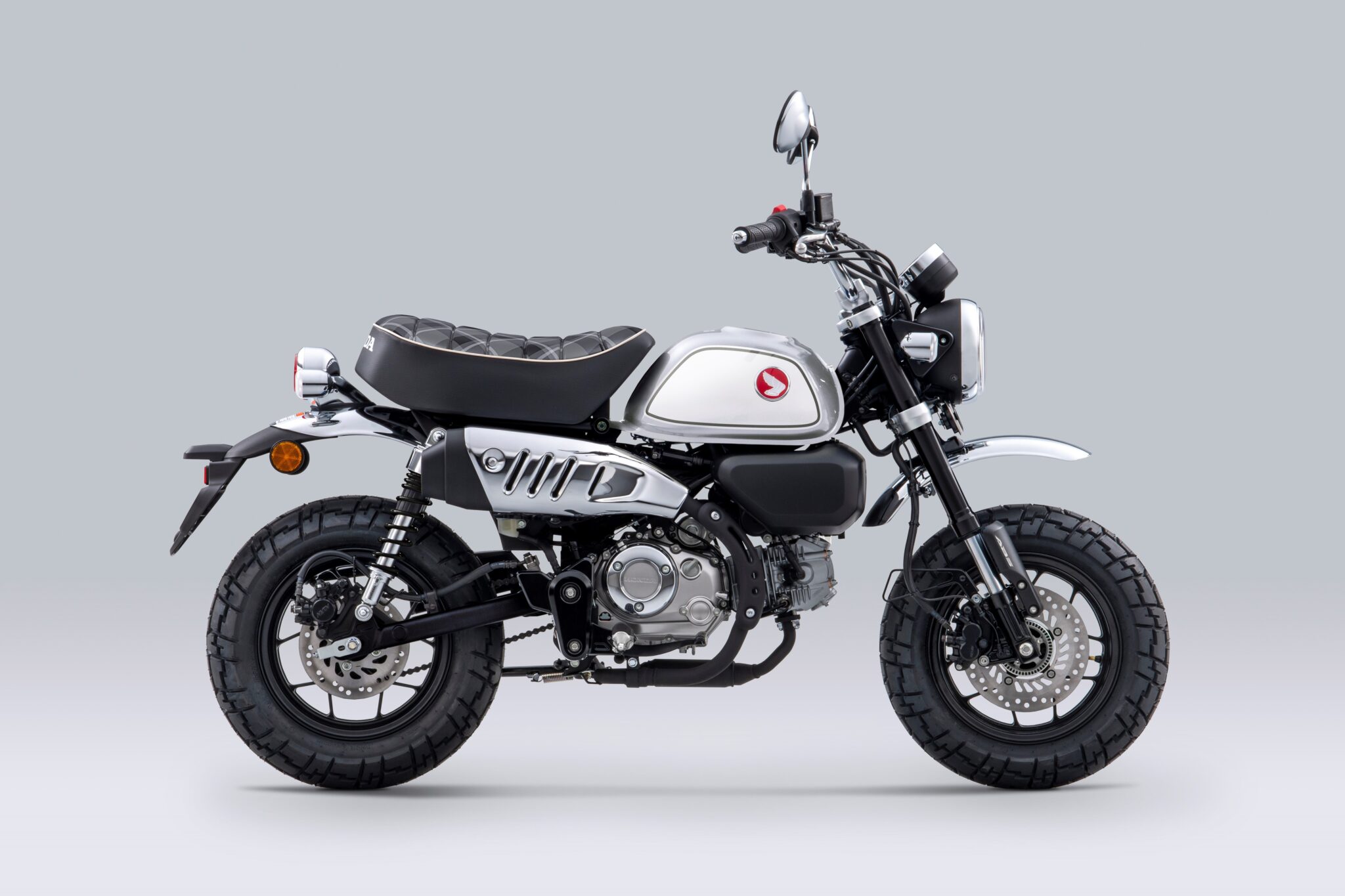

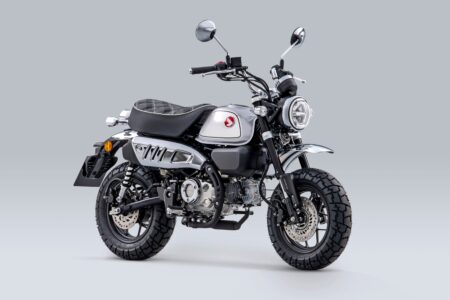

3. **NEW** Pearl Shining Black with black frame, swingarm, rear fork springs, black/white tartan seat and white tank infill

Engine

• 124cc air-cooled engine delivers 6.9kW power and 11Nm torque
• 5-speed gearbox for easy cruising speed
• EURO5 compliance

Chassis & Styling

• Steel frame, USD forks and 12-inch diameter tyres
• Twin rear shocks feature two-stage springs to deal with rough surfaces
• Easy-to-manage 775mm seat height

Electronics

• Circular LCD display and full LED lighting
• Wave pattern key with answer back
• Inertial Measurement Unit (IMU) controlled ABS braking

Monkey Milestones

1961 Z100

First model – made for use at amusement parks, with 5 inch wheels, rigid suspension, foldable handlebars and Super Cub (C50) 3.1kW OHV 49cc engine.   Backbone frame, triangular tank.

1963 CZ100

First road-going model – exported to North America and Europe.

1967 Z50M

First model sold in Japan – with ‘fold-down’ seat, handlebars and pegs to fit in the back of the car (the new fuel cap also added to prevent leaks when stored on its side during transport). Centrifugal clutch.

1969  Z50A

Telescopic front fork, 8” front wheels, low slung exhaust and indicators for the first time.

1970 Z50Z

Quick-detach front suspension to make it fold down even smaller to fit in the trunk of a small car. Centre stand to support the bike during the removal of forks

1974 Z50J

Rear suspension and independent swing arm. First trapezium fuel tank and block tyres

1978 (Z50J-I)

First model with custom bike style ‘tear drop’ fuel tank with increased capacity of 5L

1979 (Z50J-I)

Chrome plated edition

1984 (Z50J-I)

Limited edition ‘Gold’ model

1985 A-Z50J

First appearance of hand operated clutch

1987 A-AB22

‘R’ model with twin tube frame, single shock rear suspension and hydraulic front brake disc. 10in Comstar wheels with box section swingarm

 1988 A-Z50J

Dual mirrors for the first time 1991 A-Z50JOff-road styled ‘Baja’ model with twin headlights

2000

Millennium model

2004 Freddie Spencer Special

In colours based on the CB750F ridden to victory in the Daytona 100 by Freddie Spencer

2006

40^th Anniversary

2009 Monkey Limited Edition JBH-AB27

First fuel-injected version, with roller rocker arm and off-set cylinder. Trapezium shaped fuel tank

2017 50^th Anniversary Edition

New version commemorates 50^th anniversary of sales in Japan

2018 Monkey 125

An all-new Monkey 125, re-imagined for the 21^st century, takes to the roads of Europe

Technical Specifications

All specifications are provisional and subject to change without notice

Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
